You’re sitting in your EV on a freezing January morning. Yesterday the dashboard promised 280 miles. Today? 168. And you haven’t even turned on the heat yet.
That sinking feeling in your stomach isn’t paranoia. It’s real. Your EV’s invisible second system is working overtime, fighting a battle you didn’t even know existed. Most drivers have no idea this system is there until that range number drops like a stone while they’re just sitting there, keys not even in the ignition yet.
Here’s what nobody tells you at the dealership: your battery is a diva. It only performs in a narrow “Goldilocks zone” between 68°F and 104°F. Step outside that range, and things get expensive, dangerous, and weak. There’s an entire hidden system fighting 24/7 to keep your battery in that sweet spot, and the difference between a good one and a bad one? That’s the difference between an EV that works year-round and one that becomes a very expensive fair-weather car.
We’re going to decode the seven types of thermal management systems, why they matter more than horsepower, and which one is quietly protecting your car right now.

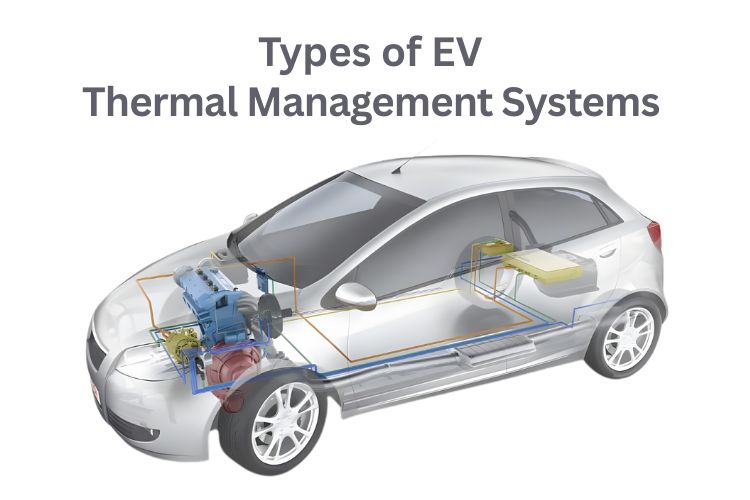

Keynote: Types of EV Thermal Management Systems
Types of EV thermal management systems determine your vehicle’s real-world performance far more than battery size alone. From passive air cooling to advanced immersion systems, each architecture delivers dramatically different results for range retention, charging speed, and battery longevity. Modern integrated systems with heat pumps and multi-port valves can preserve 90-97% of range in freezing weather while extending battery life by years. Understanding which thermal management type your EV uses is essential for matching vehicle capability to your climate and usage patterns.
Why Your Battery’s Temperature Matters More Than You Think
The sweet spot for lithium-ion batteries is between 20°C and 40°C (68°F to 104°F). Step outside that range and your battery doesn’t just get grumpy. It gets dangerous, expensive, and weak.
The Range Robbery You Can’t See
Some EV models lose up to 40% of their range when temperatures drop below freezing. That’s not a typo. In brutal cold, a battery that promises 300 miles might only deliver 180 miles on a good day.
It’s not just the air temperature doing this. Your battery is literally slowing down at the chemical level, like trying to pour cold honey. The electrochemical reactions that power your car simply move slower when it’s cold. Everything becomes more resistant, more sluggish, more inefficient.
And in brutal heat? Fast charging on a 95°F day causes permanent damage that steals years from your battery’s life. The heat accelerates chemical reactions you don’t want happening, breaking down the battery’s internal structure one charging session at a time.
The Silent Safety Issue Nobody Wants to Talk About
Thermal runaway sounds like movie jargon until you understand it’s battery-speak for “uncontrollable fire.”
Here’s the thing. When one battery cell overheats past a critical threshold, it can trigger a chain reaction. That one cell heats its neighbors, which heat their neighbors, and suddenly you’ve got an unstoppable cascade. The technical term is thermal runaway propagation, and it’s the nightmare scenario every battery engineer loses sleep over.
One study showed a devastating 55% power fade over just 20 weeks when batteries operate at 55°C. That’s not extreme heat by summer standards in Arizona or Texas. That’s just a hot day combined with aggressive fast charging.
Keeping temperatures uniform across all cells isn’t about comfort. It’s about preventing catastrophic failure and protecting a $15,000 investment.
The Money Math That Changes Everything
Poor thermal management equals faster degradation equals replacing your battery pack years earlier. Let’s talk real numbers.
Passive air-cooled systems, like those in early Nissan Leafs, lose about 4.2% battery capacity per year. That means after five years, you’re down to 79% of your original range. After eight years? You’re looking at 66% capacity and a battery replacement bill that costs more than many used cars.
Modern active liquid cooling systems? They slow this aging process dramatically, often limiting degradation to around 2.3% per year. After five years, you’re still at 88% capacity. After ten years, you’ve still got over 75% of your original range.
Good thermal management can extend your battery life by 20-30% by maintaining that narrow happy temperature window. That’s the difference between a battery that lasts the life of the vehicle and one that needs a mid-life replacement that costs as much as a new economy car.
The Cooling Family: From Stone Age to Space Age
Think of these as different approaches to keeping a laptop from overheating, scaled up 1,000 times and tasked with protecting your most expensive car component.
Passive/Active Air Cooling: The Budget Option That’s Fading Fast
Air cooling is exactly what it sounds like. Fans blow air directly through or around the battery pack, using natural convection or forced airflow. It’s like waving a towel in front of a hot oven.
The honest truth? It’s cheap and lightweight, but completely at the mercy of weather and struggles badly with fast charging. Air has terrible thermal conductivity. It just can’t move heat fast enough when things get serious.
This is why early Nissan Leafs suffered catastrophic battery degradation in Arizona summers. The passive air cooling system simply couldn’t keep up with the heat. The phenomenon even got its own name: “Rapidgate.” Owners discovered their cars would throttle charging speeds to a crawl after just one fast-charging session because the battery was overheating.
Best for: Short city commutes in mild climates. Nothing serious. If you live in San Diego and never fast charge, you might be fine. Anywhere else? You’re rolling the dice.
Liquid Cooling (Indirect): Today’s Mainstream Workhorse
This is the industry standard used by Tesla, BMW, Chevy Volt, Jaguar I-PACE, and most modern EVs with serious range credentials.
How it works: a water-glycol coolant mixture flows through aluminum plates or channels positioned next to the battery cells. The coolant absorbs heat and carries it away to a radiator, where it’s rejected to the outside air. It’s elegant, proven, and effective.
The numbers don’t lie. Liquid cooling can whisk heat away about five times faster than air. This allows the battery to stay in its optimal temperature window during hard driving, fast charging, and extreme weather. Research shows it can extend battery life by 20-30% compared to air cooling by maintaining consistent temperatures and preventing hot spots.
The catch? It’s more complex. You’ve got pumps, coolant loops, cold plates, radiators, and more potential failure points. It’s heavier. It adds cost. But for any EV that takes itself seriously, it’s worth every ounce and every dollar for the performance and longevity it delivers.
Direct Refrigerant Cooling: The Performance Beast
Here’s where things get interesting. Direct refrigerant systems integrate your car’s AC system directly with the battery cooling loop.
Instead of water-glycol, refrigerant flows through the battery thermal system. The refrigerant can absorb massive amounts of heat as it evaporates, providing cooling power that liquid systems struggle to match. It’s the same technology that makes your home air conditioner work, just repurposed for keeping your battery ice-cold during brutal fast-charging sessions.
The performance benefits are real. Direct refrigerant cooling can provide up to 20% faster fast-charging times by aggressively managing heat during high-power sessions. When you’re pulling 250kW from a DC fast charger, your battery generates several kilowatts of waste heat. A refrigerant chiller can keep the battery below ambient temperature, allowing it to accept maximum charging power for much longer before the system throttles back.
The trade-off? You’re tying your battery cooling to your HVAC system, adding complexity but gaining peak efficiency. Perfect for heavy fast-charge users, fleet vehicles, and ride-hail drivers pushing their EVs hard day after day.
Immersion Cooling: The Future (Almost Here)
Picture your battery cells literally bathing in non-conductive dielectric fluid. It’s like water-cooling a gaming PC, scaled up to automotive levels and engineered for safety.
The cells sit directly in the fluid. Heat transfers immediately from the cell surface to the surrounding liquid with zero air gaps, no thermal paste, no intermediate cold plates creating bottlenecks. The fluid circulates, carrying heat to an external heat exchanger.
The benefits are dramatic. Immersion cooling improves thermal uniformity to an almost absurd degree, cutting cell-to-cell temperature gradients to under 1.5°C in testing. When every cell in your pack is within a degree or two of every other cell, degradation becomes uniform, and the weakest-link problem that plagues other systems virtually disappears.
Experts rate immersion cooling as exceptional for cooling capacity, fast-charge readiness, and safety. It can even help contain thermal runaway events by surrounding every cell with cooling fluid that absorbs and dissipates heat before it can propagate to neighboring cells.
The challenge? It’s still scaling for passenger cars. The dielectric fluids are expensive. The sealing requirements are stringent. But it’s already finding commercial use in electric construction vehicles, mining trucks, and high-performance applications where thermal management is absolutely mission-critical. Your 2028 EV? There’s a decent chance it’ll have some form of immersion cooling.
Phase Change Materials (PCMs) and Heat Pipes: The Quiet Guardians
These are the unsung heroes working in the background, often paired with active systems for belt-and-suspenders protection.
Phase change materials absorb heat by melting at specific temperatures, usually around 50-60°C. Think of them as thermal sponges for sudden heat spikes. During aggressive fast charging or hard driving, the PCM absorbs the transient heat load, buffering the cells from rapid temperature increases. Once the heat event passes, the PCM slowly releases that stored heat and solidifies, ready for the next spike.
Research shows PCMs combined with cooling fins can reduce battery temperatures by over 55% even under intense 3C discharge rates. They hold about 78% of the passive thermal management market share, usually working alongside active cooling systems.
Heat pipes are even more elegant. They use vapor to shuttle heat away without consuming any power, like invisible conveyor belts for thermal energy. A small amount of working fluid inside a sealed tube evaporates at the hot end, travels as vapor to the cold end, condenses while releasing heat, and returns via a wick structure.
Both technologies are primarily heat transfer devices rather than complete cooling solutions. They must be paired with an ultimate heat rejection system like a radiator. But as components within a larger thermal architecture, they’re brilliant at evening out hot spots and managing transient loads.
The Quick Family Comparison
| System Type | Fast-Charge Ready? | Extreme Weather Performance | Complexity/Cost | Best For |
|---|---|---|---|---|
| Air Cooling | Low (prone to throttling) | Struggles badly in extremes | Low/Simple | Budget EVs, mild climates only |
| Liquid Plates | Medium-High | Good with proper control | Medium | Today’s mainstream choice |
| Direct Refrigerant | High | Excellent heat extraction | Medium-High | Performance, heavy duty use |
| Immersion | Very High | Exceptional uniformity | High (emerging tech) | Future-proofing, ultra-fast charge |
| Phase Change (PCM) | Supplemental only | Buffers spikes well | Low-Medium | Paired with active systems |
The Heat Pump Revolution: The Winter Game-Changer Nobody Saw Coming
Here’s where things get exciting. Most new EVs have decent battery cooling. But the smartest ones add a heat pump, and this changes everything about winter driving.
What Heat Pumps Actually Do (And Why You Should Care)
Heat pumps are 300% more efficient than traditional resistance heating. That’s not marketing spin. That’s physics.
Traditional resistance heaters work like a toaster. They convert electricity directly into heat at roughly 100% efficiency. One kilowatt of electricity becomes one kilowatt of heat. Simple, but wasteful when that electricity is coming from your battery.
Heat pumps are fundamentally different. They don’t make heat. They steal it. They move heat from outside air, waste heat from the motor and battery, and pump it where you need it. Because they’re moving heat rather than creating it, they can deliver three kilowatts of heating for every one kilowatt of electricity consumed.
The physics sound impossible, but the range savings are absolutely real.
The Cold-Weather Truth, Without Sugarcoat
Let’s talk numbers that actually matter to your wallet and your range anxiety.
Heat pumps cut HVAC power consumption by approximately 38% at 20°F compared to resistance heaters. In real-world conditions, that translates to range improvements of typically 8-10% in moderate cold. But studies show gains of 15-22.6% at temperatures around 14°F, where resistance heaters are burning through your battery just to keep you from freezing.
Systems like Marelli’s integrated thermal management can extend winter driving range by up to 20%. That’s the difference between completing your commute comfortably and needing an unplanned charging stop in the cold.
Translation: heat pumps are the difference between range anxiety and range confidence on February mornings.
The Winter Performance Gap
| System Configuration | Range Loss at 20°F | Best-Case Retention | Cost Premium | Worth It If… |
|---|---|---|---|---|
| Basic (no heat pump) | 30-40% loss | About 60-70% | Baseline | You live in San Diego |
| With heat pump | 3-20% loss | 80-97% | +$1,000-3,000 | You see real winters |
| Advanced integrated thermal | Under 10% loss | 90-97% | +$2,000-4,000 | Cold climate is non-negotiable |
The Real-World Winners
Top performers like the Hyundai Ioniq 5 and Jaguar I-PACE retain up to 97% of their range even at 32°F. That’s not a typo. While cheaper EVs with basic systems are losing 30-40% of their range, these vehicles are barely breaking a sweat.
Why do some EVs laugh at winter while others leave you stranded? It’s the heat pump and thermal integration working together as a unified system. The heat pump scavenges waste heat from the powertrain. It pulls ambient heat from outside air even when it’s freezing. It minimizes the direct battery drain that cripples lesser systems.
The premium you pay upfront gets returned to you in saved energy, extended battery life, and eliminated range anxiety every single winter for the life of the vehicle.
Integrated Thermal Management: Where Everything Works Together
Modern EVs don’t just cool the battery in isolation. The smartest designs treat the entire car as one thermal ecosystem, and this is where the magic really happens.
The Octovalve and Multi-Port Magic
Multi-port valves, like Tesla’s famous Octovalve, are the traffic controllers of the thermal world. They route heat between battery, cabin, and drivetrain like a smart apartment building sharing warmth between rooms.
Here’s how it works. Your electric motor generates waste heat during driving. Traditionally, that heat was simply rejected through a radiator. But in an integrated system, that waste heat becomes valuable. The Octovalve can redirect warm coolant from the motor to the battery on a cold morning, pre-conditioning it for better performance. Or it can route that heat to the cabin, reducing the load on the heating system and saving battery power.
Instead of three separate thermal systems fighting each other and wasting energy, you have one intelligent system that harvests, stores, and redirects every possible unit of thermal energy to where it’s needed most.
Serial vs. parallel coolant loops offer different trade-offs. Serial systems are simpler but compromise precise temperature control. Parallel systems allow independent control of different components but require more complex plumbing and additional pumps.
The Unified Approach Pays Off
The efficiency gains are substantial. Integrated systems can reduce total energy drain by up to 52% compared to traditional separate systems. That’s not incremental improvement. That’s a fundamental rethinking of how thermal energy moves through the vehicle.
In extreme cold, integrated thermal management can boost total system efficiency by 12% or more by recycling waste heat that earlier designs simply vented away. Fourth-generation systems from suppliers like Hanon and Marelli are now harvesting heat from sources previous generations didn’t even consider, like heat from the onboard charger or even ambient radiant heat from sun-exposed body panels.
Powertrain Cooling: The Quiet Workhorse You Never See
Your battery gets all the attention, but your electric motor and inverter generate serious heat too. Managing it matters for sustained performance.
How Motor Cooling Works
Water-glycol jackets are the standard approach. Coolant flows through passages cast into the motor housing, absorbing heat from the stator and rotor. It’s reliable and proven, but limited at peak power outputs where heat generation spikes dramatically.
Oil or ATF spray cooling takes things up a notch. Transmission fluid is sprayed directly onto the stator windings and rotor, providing more aggressive heat removal by directly cooling the hottest components. This boosts sustained power density, allowing smaller motors to deliver more continuous power without overheating.
Dielectric oil systems with plate heat exchangers offer efficient, compact packaging for high-performance applications. The oil cools the motor, then passes through a heat exchanger where the heat is transferred to the main coolant loop for rejection.
Why This Matters to You
Poor motor cooling means power limitations on long highway climbs or repeated hard acceleration. Hot copper hates performance. As the motor windings heat up, their electrical resistance increases, efficiency drops, and the battery management system starts protecting the motor by limiting power.
Good powertrain thermal management is the difference between advertised power and real-world sustained power. A Tesla Model S Plaid can deliver over 1,000 horsepower repeatedly because its aggressive powertrain cooling prevents thermal throttling. A cheaper EV with basic cooling might deliver peak power once or twice before the system backs off to protect itself.
Safety and Longevity: Why Uniformity is Everything
The best thermal management system isn’t the one that cools the most. It’s the one that cools the most evenly. Here’s why that matters to your wallet and your safety.
The Hidden Danger of Hot Spots
Uneven temperatures create uneven aging. Some cells degrade faster than others, and the whole pack weakens to match the weakest cell. Your battery’s total capacity is limited by its worst-performing cell, so if thermal management allows hot spots to develop, those cells age faster and drag down the entire pack.
Temperature variations over 5°C across the pack significantly accelerate capacity loss. Even a seemingly small temperature difference of 10°C between the hottest and coldest cells can reduce overall pack life by several years.
Uniform cooling can slow degradation and keep usable capacity more consistent over the vehicle’s life. This is why immersion cooling and direct refrigerant systems are so valuable despite their complexity. They deliver exceptional temperature uniformity that air cooling and even some liquid systems struggle to match.
Thermal Runaway and Why Direct Cooling Matters
Direct cell cooling, whether refrigerant-based or immersion, helps quench thermal runaway events before they propagate to neighboring cells.
When a cell enters thermal runaway, it generates tremendous heat rapidly. If that heat can’t be removed fast enough, it heats adjacent cells above their critical temperature, triggering a cascade. Direct cooling systems position the cooling medium in intimate contact with every cell, maximizing heat removal capability right at the source.
Immersion cooling surrounds every cell with cooling medium, making it inherently safer when things go wrong. The fluid absorbs heat from all sides of the cell simultaneously, providing a level of thermal buffering that other technologies can’t match.
This isn’t just theory. It’s why high-risk applications like electric construction equipment, mining trucks, and performance vehicles are adopting immersion cooling first. When the stakes are highest, the thermal management system needs to be bulletproof.
How to Know What Your EV Actually Has (And Why It Matters)
Time to turn knowledge into power. Here’s how to decode what’s really under the hood and what to demand when you’re shopping.
Detective Work: Reading Between the Spec Sheet Lines
Look for specific mentions of “heat pump,” “multi-port valve,” “Octovalve,” “chiller,” or “direct refrigerant cooling” in the marketing materials and spec sheets. These are the buzzwords that signal advanced thermal management.
Battery cooling method should be explicitly stated: air-cooled, liquid-cooled (indirect), direct refrigerant, or immersion. If the spec sheet is vague or uses generic language like “advanced thermal management” without specifics, that’s often a red flag for basic air cooling dressed up in marketing speak.
Check for battery preconditioning capability. Modern EVs can pre-warm or pre-cool the battery before fast charging to optimize charge speeds. If this feature exists, it signals a sophisticated thermal system with heating and cooling capability.
The Questions That Reveal Everything
When you’re at the dealership, ask these specific questions. Dealers hate them, but they cut through the marketing fluff immediately.
“What’s the real-world range at 10°F and at 95°F?” If they can’t or won’t answer, check independent sources like Recurrent Auto or Geotab’s temperature-range studies.
“Does this have a heat pump, or will I burn five kilowatts every morning just warming up?” A 5kW heating load for one hour consumes 5kWh, which translates to about 15-20 miles of range burned before you even start driving.
“What’s the fast-charging speed after 30 minutes of sustained highway driving?” This reveals thermal headroom. A well-designed system maintains high charging speeds even when the battery and powertrain are already warm from driving. A weak system throttles dramatically.
Regional Reality Check: Match the System to Your Zip Code
Live in mild climates like San Diego or coastal California? You can probably get away with liquid cold plates and basic HVAC. The thermal demands are modest, and you’ll rarely stress the system.
Minnesota winters or Texas summers? Heat pump integration is absolutely non-negotiable. You’ll use it every single day for months at a time, and the energy savings pay back the premium within a couple years.
Fleet or ride-hail operation with heavy fast-charge use? Direct refrigerant or advanced liquid cooling is worth the premium for longevity. You’re putting far more thermal stress on the battery than typical owners, and skimping on thermal management will cost you a battery replacement years earlier.
The Market is Waking Up (And What It Means for You)
The numbers don’t lie. Automakers finally understand thermal management matters as much as battery size, and that’s great news for buyers.
Follow the Money
The EV battery thermal management market is exploding from $5.41 to 6.4 billion in 2024 to a projected $29.09 to 29.2 billion by 2030. That’s a staggering 32.9% compound annual growth rate.
Translation: better systems are becoming standard equipment, not exotic luxury options reserved for $100,000 vehicles. Features that were exclusive to Tesla and Porsche three years ago are now showing up in $35,000 mainstream EVs.
The cost curve is dropping. What once required custom engineering is now being commoditized by tier-one suppliers. That’s fantastic news for consumers because it means better thermal management at lower price points across the entire market.
The Innovation Pipeline Coming Soon
AI-powered systems are coming that predict thermal behavior and pre-condition batteries before you even need it. Imagine your car knowing from your calendar that you have a long trip tomorrow morning and pre-conditioning the battery overnight when electricity is cheap, rather than burning range to warm up when you start driving.
Solid-state batteries, when they finally arrive at scale, will demand even more sophisticated cooling architectures. They operate at higher power densities and have different thermal characteristics than current lithium-ion cells. The thermal management systems being developed now are preparing for that transition.
Your 2028 EV will laugh at the thermal struggles of 2024 models. The pace of innovation in this space is accelerating, driven by the push for 10-minute charging times and all-weather range parity with gas vehicles.
The Honest Trade-Offs Most Guides Gloss Over
Air cooling is cheap and light but struggles with fast charging and hot climates. It’s like choosing between a simple hotplate and a smart induction range with ventilation. One works fine for basic needs. The other handles serious cooking without breaking a sweat.
Direct refrigerant adds HVAC complexity and ties battery cooling to cabin climate control. But it gains peak cooling efficiency when you push hard, making it ideal for performance applications and heavy users.
Immersion promises exceptional safety and ultra-fast charge readiness. The thermal uniformity and safety margins are unmatched. But it’s still scaling for mainstream passenger cars, and the dielectric fluids add cost and maintenance considerations.
The best system for you depends on your climate, usage patterns, and budget. There’s no universal answer, and anyone who tells you otherwise is selling something.
Conclusion: The Invisible System That Deserves Your Attention
We started with that sinking feeling of watching your range disappear on a cold morning. Now you know it’s not magic, bad luck, or a broken battery. It’s thermal management, and it’s the difference between an EV that works year-round and one that becomes a very expensive fair-weather car.
The seven types of thermal management systems range from simple air cooling, already fading into history, to exotic immersion systems that represent the future. In between, liquid cooling has become the mainstream standard, heat pumps have revolutionized winter performance, and integrated systems are harvesting every possible watt of waste heat to maximize efficiency.
Your first step today? Check what thermal management your current EV has, or if you’re shopping, make it the second question you ask after range. Not horsepower. Not 0-60 times. Thermal management. Because it governs everything that matters: how far you can drive in real weather, how fast you can charge, and how long your battery will last.
The invisible system deserves your attention. Now you know what to look for.
EV Thermal Management System Types (FAQs)
Do all electric vehicles have thermal management systems?
Yes. Every EV has some form of thermal management, even if it’s just passive air cooling. However, not all systems are created equal. Budget EVs might rely on basic air cooling that struggles in extreme weather, while premium models use sophisticated liquid cooling, heat pumps, and integrated systems. The question isn’t whether your EV has thermal management, but how effective that system is under real-world conditions.
Which EV thermal management is best for winter driving?
Heat pump systems are the clear winner for winter performance. They’re 300% more efficient than resistance heaters and can cut winter range loss from 40% down to under 10%. Look for EVs with integrated heat pumps and battery preconditioning capability, like the Hyundai Ioniq 5, Tesla Model Y, or BMW i4. These retain 80-97% of their range even in freezing temperatures, while basic systems can drop to 60% or worse.
How much does thermal management reduce EV range?
It depends entirely on the system type and weather conditions. In moderate weather, a good thermal management system uses minimal power. But in extreme cold, a basic system with resistance heating can consume 3-5kW continuously just for cabin heat and battery warming. That’s 15-20 miles of range lost per hour. Heat pump systems reduce this to 1-1.5kW, saving significant range. The thermal management system itself is fighting to preserve your range, not reduce it.
What happens if an EV battery overheats during fast charging?
The battery management system protects the battery by throttling the charging power, sometimes dramatically. This is called thermal derating. If the battery temperature rises above about 45-50°C, charging speeds can drop from 250kW to 40kW or less. This is why preconditioning matters for road trips, and why advanced thermal systems that use chillers or refrigerant cooling maintain high charging speeds even during back-to-back charging sessions.
Can I retrofit better thermal management in my EV?
Unfortunately, no. The thermal management system is deeply integrated into the vehicle’s design, including the battery pack construction, coolant routing, HVAC system, and vehicle software. You can’t meaningfully upgrade it after purchase. This is why understanding thermal management before you buy is so critical. The system you get is the system you live with for the life of the vehicle.
