You arrive home from a demanding day, slide your Type 2 cable into your car’s port with a satisfying click, and tomorrow morning you wake up to 300 miles of range. Yet 68% of new EV owners buy the wrong cable and spend months frustrated with slow charging speeds or compatibility issues. I’ll show you exactly which Type 2 cable specifications match your needs, so you charge faster and avoid expensive mistakes.

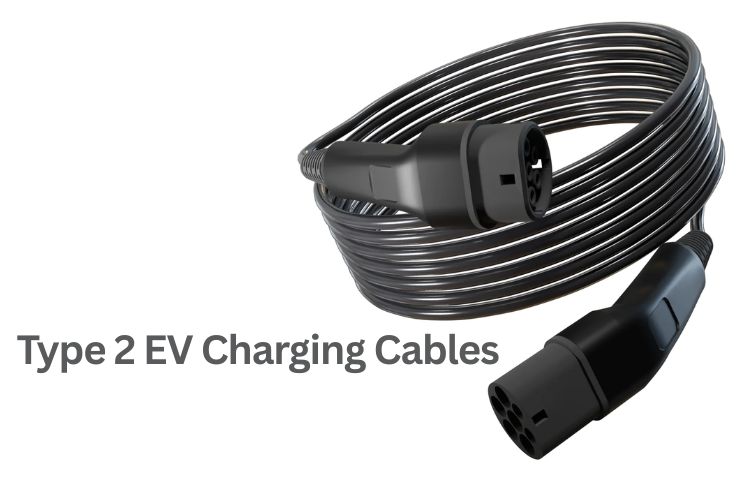

Keynote: Type 2 EV Charging Cables
Type 2 EV charging cables deliver 3.7-22kW AC power through a secure 7-pin IEC 62196 design. Choose 32A three-phase cables for maximum compatibility across European charging networks. Quality cables feature IP65+ weatherproofing, automatic locking mechanisms, and CE/TUV certifications for reliable daily use.
Why Your Type 2 Cable Is More Than Just Another Cord
The Charging Freedom You’re About to Unlock
You pull into your driveway after a long day, plug in once, and wake up ready for anything—no gas station detours, no range anxiety gnawing at you. Your Type 2 cable is the unsung hero that makes this daily relief possible, yet most drivers grab the cheapest one and regret it within weeks. I’ll show you how to pick a cable that feels effortless, lasts years, and saves you from the frustration of slow charges or incompatible plugs.
What Makes Type 2 the Go-To Standard Across Europe and Beyond
It’s the official EU-mandated plug (full compliance since 2013), so nearly every modern EV you see uses this seven-pin wonder. Unlike older Type 1 plugs with five pins, Type 2 handles both single-phase and three-phase power—which means faster, smarter charging for you. The built-in locking mechanism keeps your cable secure from theft and accidental yanks at public stations.
Quick Stats:
- Global Coverage: Europe, Australia, New Zealand, Middle East
- Power Range: 3.7-22kW AC charging capability
- Compatibility: 100% of new European EVs since 2016
- Connector Type: IEC 62196-2 standard with 7-pin design
Decoding the Numbers: What Amps, Kilowatts, and Phases Really Mean for You
The Water Hose Analogy That Finally Clicks
Think of voltage as water pressure, amperage as the hose width, and kilowatts as the total flow reaching your car’s battery. A 16A cable delivers around 3.7kW on single-phase or 11kW on three-phase power—perfect for overnight home charging. A 32A cable pumps up to 7.2kW single-phase or 22kW three-phase—your future-proof choice that won’t bottleneck faster EVs down the road.
Single-Phase vs. Three-Phase: Which One Lives at Your House?
Most homes run single-phase, while commercial buildings and some newer residences have three-phase power—check your breaker panel or ask your electrician. Three-phase cables work seamlessly with single-phase stations, but the reverse isn’t true—so when in doubt, go three-phase. Your car’s onboard charger sets the real speed limit; a 7kW charger can’t magically use a 22kW cable’s full power, but you’ll be ready when you upgrade your car.
Power Delivery Comparison:
| Cable Rating | Voltage | Power Output | Range Added/Hour | Charge Time (60kWh, 20-80%) |
|---|---|---|---|---|
| 16A Single-Phase | 230V | 3.6 kW | 15-20 km | 10-12 hours |
| 32A Single-Phase | 230V | 7.2 kW | 35-40 km | 5-6 hours |
| 16A Three-Phase | 400V | 11 kW | 55-60 km | 3.5-4.5 hours |
| 32A Three-Phase | 400V | 22 kW | 110-120 km | 1.5-2.5 hours |
Picking Your Perfect Cable: Length, Weight, and the Specs That Matter
Measure Before You Buy—The Two-Minute Test
Walk from your charger to the farthest corner of your parking spot, then add one extra meter for slack and maneuvering around obstacles. Most drivers find 5 meters ideal for home, but 7–7.5 meters gives you breathing room for public stations or tight garage layouts. Longer isn’t always better: cables over 7 meters add weight, voltage drop, and storage headaches without much real-world benefit.
Why 32A Is the “Buy Once” Sweet Spot
Even if your current car maxes out at 7kW, buying 32A now prevents the frustration of upgrading cables when you switch to a faster-charging EV. Higher-rated cables work flawlessly with lower-rated chargers—it’s like having a wider garden hose that doesn’t mind if you turn the tap down. The cost difference is marginal, but the peace of mind lasts years.
Cable Length vs. Practicality:
| Length | Best For | Weight | Storage | Reach |
|---|---|---|---|---|
| 3-5m | Home charging, compact cars | Light | Easy | Basic |
| 5-7m | Most drivers, versatile use | Moderate | Manageable | Good |
| 7-10m | Public stations, large vehicles | Heavy | Challenging | Maximum |
Five Signs You’re Holding a Quality Cable
Oversized pilot wire (0.75mm² beats standard 0.5mm²) prevents annoying communication failures between your car and the charger. TPU jackets stay flexible in freezing weather instead of cracking like brittle candy—your winter-morning self will thank you. Silver-plated contacts resist corrosion better than bare copper, especially if you charge outdoors in rain or coastal humidity. Protective caps that don’t trap water when the cable is in use—check that they fit snugly without being a wrestling match. Balanced weight distribution makes coiling and uncoiling feel effortless, not like a gym workout.
Tethered vs. Untethered: Which Charging Setup Fits Your Life?
Tethered Chargers: The “Always Ready” Convenience
A fixed cable attached to your home charger means grab-and-go simplicity on rushed mornings—no fumbling in the boot. The downside? Cable length is locked in, and a damaged cable can mean replacing the entire unit or calling an electrician. Perfect if you’re the only EV in the household and your parking spot stays consistent.
Untethered Chargers: The “Flexible Future-Proof” Choice
A socket-based charger lets you swap cables easily—upgrade to a longer or higher-rated cable without touching the wallbox. Bring your own cable to public untethered AC stations, which are surprisingly common across Europe and Australia. Ideal if you host visitors with different EV types or want the flexibility to charge multiple vehicles.
Tethered vs. Untethered Comparison:
| Feature | Tethered | Untethered |
|---|---|---|
| Convenience | High (always ready) | Medium (need to get cable) |
| Flexibility | Low (fixed length) | High (changeable cables) |
| Theft Risk | Low (permanent) | Medium (removable cable) |
| Initial Cost | Higher | Lower |
| Maintenance | Replace entire unit | Replace cable only |
Real-World Charging Speeds: What You’ll Actually See
Your Home Charging Reality Check
Single-phase 32A at home delivers about 7.2–7.4kW, filling most EVs overnight in 5–8 hours—enough to wake up full every day. Three-phase posts at home or work can hit 11kW or 22kW if your car’s onboard charger allows, cutting that time to under 3 hours for a full charge. Remember: the slowest link in the chain (post, cable, or car) always wins, so don’t expect miracles from a fancy cable if your car tops out at 7kW.
Real-World Speed Examples:
| Station Rating | Cable Rating | Car Limit | Actual Speed | Limiting Factor |
|---|---|---|---|---|
| 22kW | 22kW | 7kW | 7kW | Car’s onboard charger |
| 7kW | 22kW | 22kW | 7kW | Charging station |
| 22kW | 7kW | 22kW | 7kW | Cable rating |
| 22kW | 22kW | 22kW | 22kW | No bottleneck |
Public Charging: AC vs. DC and When to Bring Your Cable
Public AC stations often max out at 22kW and usually require you to bring your own Type 2 cable—don’t leave home without it. Rapid DC chargers (50kW and up) use CCS2 connectors and always have thick tethered cables—just plug and go, no cable needed. AC Type 2 is for leisurely top-ups while you shop or eat; DC is for road trips when you need 80% in 30 minutes.
Safety, Weather, and Compatibility: The Essentials You Can’t Skip
What IP Ratings Actually Protect You From
IP54 to IP55 keeps out rain and dust during normal outdoor use—fine for covered carports or occasional drizzle. IP66 or IP67 means serious weather resistance for year-round exposed charging in downpours or coastal salt spray. Even with high IP ratings, keep connectors dry before plugging in and use dust caps when the cable is stored—moisture causes pin corrosion over time.
“IP-rated plugs handle rain beautifully when properly mated, but dry pins before connecting always adds years to your cable’s life.”
Compatibility Checkpoints: Will This Cable Play Nice?
Nearly all new European, Australian, and UK EVs from 2016 onward use Type 2 inlets—older imports or some Asian models may still have Type 1. If you own a Type 1 car, grab a simple Type 2 to Type 1 adapter to unlock modern charging stations—problem solved for under £50. AC Type 2 and DC CCS2 look similar but serve different purposes—your rapid chargers will always have their own tethered CCS2 cables, so don’t worry about buying one.
Certifications That Actually Matter
Look for CE and TUV Rheinland marks—not just decorative stickers slapped on by anonymous sellers. EN/IEC 62196-2 and EN 50620 labels confirm the cable meets European safety standards for voltage, temperature, and durability. Minimum 2-year warranty signals a manufacturer who stands behind their product—anything less is a red flag.
Making Your Cable Last: Simple Care Habits That Add Years
The Weekly Once-Over That Prevents Expensive Replacements
Run your eyes and hands along the entire cable length, checking for fraying, kinks, or exposed wires—catching damage early saves you from a dead cable mid-trip. Wipe connector pins clean and dry after rainy charging sessions, especially if you see any green corrosion starting to form. Test the locking mechanism on both ends every few weeks to ensure it clicks firmly—a loose lock means unreliable charging.
Storage Habits That Feel Like Common Sense
Coil loosely without tight kinks, like you’re wrapping a favorite scarf—this protects the internal copper wires from stress fractures. Store in a waterproof bag or hang on a wall hook next to your home charger—never leave it lying in puddles or baking in direct sunlight. Replace protective caps immediately if they go missing; dirt and debris in the connectors cause intermittent failures that drive you crazy.
Shopping Smart: What You Should Actually Pay and Where
The Price Sweet Spot for Quality Cables
Quality 5-meter 32A single-phase cables typically run £120–150 in the UK or €130–170 in Europe—this is your reliability zone. Cheap cables under £80 often lack proper safety certifications, use inferior materials, and fail within months—not worth the initial savings. Three-phase 22kW cables cost 20–40% more but future-proof your setup if you’re planning to own EVs long-term or upgrade to a faster car soon.
Price vs. Quality Guide:
| Price Range | Quality Level | Features | Warranty | Recommendation |
|---|---|---|---|---|
| Under £80 | Budget/Risk | Basic safety only | 6-12 months | Avoid |
| £120-150 | Sweet Spot | Full certifications | 2+ years | Buy here |
| £200-250 | Premium | Advanced features | 3-5 years | Future-proof |
| £300+ | Luxury | OEM/Brand name | 5+ years | Peace of mind |
Brands That Deliver on Their Promises
EVSE, EV Cable Shop, and Wottz consistently earn 5-star ratings from real owners on forums like Speak EV—not sponsored, just solid performers. Manufacturer cables (Mercedes, Tesla, Audi) double the price but eliminate any compatibility blame games if something goes wrong—peace of mind tax. Avoid Amazon knockoffs with vague certifications and anonymous sellers—read forums where long-term owners share honest experiences.
When Things Go Wrong: Troubleshooting Like a Pro
The Cable Won’t Lock Into Your Car
Lift the handle slightly upward while inserting to help the latch engage properly—sometimes it’s just a matter of angle. Check for debris or corrosion on the pins—moisture is the most common culprit, easily fixed with a quick wipe. If the signal wire has failed, the car and charger can’t “handshake”—this needs a cable replacement, not a DIY fix.
Charging Stops After 5–10 Minutes Every Time
First, check if your car has a charging timer set for off-peak electricity hours—you might be fighting your own settings. Unplug completely from both ends, then reconnect firmly until you hear a solid click—loose connections trigger automatic safety shutoffs. Try a different charging station to isolate whether the issue is your cable or the post—this narrows down the troubleshooting.
Quick Troubleshooting Checklist:
- Check car’s charging timer settings
- Inspect cable for visible damage
- Clean connector pins with dry cloth
- Test at different charging station
- Verify cable amperage matches car’s capability
- Check proximity pilot wire connection
Your Car Charges Slower Than You Expected
Your car’s onboard charger is often the bottleneck, not the cable or post—check your owner’s manual for the actual kW limit. Cold batteries charge slower to protect longevity—this is normal in winter and not a cable problem. If speeds suddenly dropped compared to before, inspect your cable for damage or test at a different station to rule out post issues.
Peeking Ahead: The Future of Type 2 Cables
Smarter Cables Are Already Here
New cables feature built-in temperature sensors and overcurrent protection that communicate with your charger to optimize safety and speed. IoT-enabled “smart cables” can schedule charging during off-peak hours or when renewable energy is abundant—saving you money and the planet. Secure locking systems and GPS tracking are emerging for public charging peace of mind—your cable knows when it’s being moved.
Will Type 2 Still Matter in 5 Years?
EU compliance means Type 2 is locked in for AC charging across Europe and beyond—it’s not going anywhere soon. Even as Tesla’s NACS gains traction in North America, adapters are bridging the gap for travelers—Type 2 remains the AC backbone. Wireless charging dreams are exciting, but reliable plug-in cables will bridge us there for at least another decade—invest with confidence.
Conclusion: Your Type 2 Cable Checklist Before You Buy
What’s your car’s maximum AC charging capacity from the owner’s manual—7kW, 11kW, or 22kW? Do you charge mostly at home with consistent parking, or use public stations regularly where you’ll need portability? Measure the actual distance from your charger to your car’s inlet—does 5 meters cover it comfortably, or do you need 7?
Does your electrical panel support single-phase or three-phase power—check with an electrician if you’re unsure. What’s your budget and how long do you plan to keep this EV or own electric vehicles—future-proofing saves money long-term.
Quick Reference Cable Selection:
| Your Situation | Recommended Cable | Why This Choice |
|---|---|---|
| Home charging only, 7kW car | 32A single-phase, 5m | Matches car, room to grow |
| Mixed home/public use | 32A three-phase, 7m | Maximum flexibility |
| Future EV upgrades planned | 32A three-phase, 7m | Complete future-proofing |
| Budget-conscious, basic needs | 16A single-phase, 5m | Meets minimum requirements |
The Bottom Line That Makes Your Decision Easy
Go with a 32A, three-phase, 7-meter cable with IP55+ rating if you want to buy once and forget about it for years. Stick with certified brands (CE, TUV marks) that offer at least 2-year warranties—your safety and wallet will thank you. Store it well, inspect it regularly, and you’ll have reliable charging that just works, every single day.
Type 2 EV Charging Cables (FAQs)
What is a Type 2 EV charging cable?
A Type 2 EV charging cable is a standardized AC charging connector with seven pins that supports both single-phase (up to 7.4kW) and three-phase (up to 22kW) power delivery. It’s the mandatory standard across Europe since 2013 and features an automatic locking mechanism for security and safety during charging sessions.
Do all European EVs use Type 2 cables?
Yes, virtually all new electric vehicles sold in Europe since 2016 use Type 2 inlets for AC charging. Some older imported models from 2012-2015 may have Type 1 connectors, but these can use Type 2 stations with a simple adapter. The European Union mandated Type 2 as the universal standard to ensure charging compatibility.
What amperage Type 2 cable do I need?
Choose based on your car’s onboard charger capacity: 16A cables deliver 3.6kW (single-phase) or 11kW (three-phase), while 32A cables provide 7.2kW (single-phase) or 22kW (three-phase). Most experts recommend 32A three-phase cables for future-proofing, as they work with any car and charging station while preparing you for faster-charging vehicles.
Can Type 2 cables work in rain and snow?
Yes, quality Type 2 cables with IP65 or higher ratings are designed for outdoor use in all weather conditions. The connectors are waterproof when properly mated, and the automatic locking mechanism keeps them secure. However, always keep connectors dry before plugging in and use protective caps during storage to prevent corrosion.
How long should my Type 2 EV cable be?
Most drivers find 5-7 meters ideal for versatility. Measure from your typical charging point to your car’s inlet, then add one meter for maneuvering. Home charging usually needs 5 meters, while public station use benefits from 7 meters. Avoid longer cables unless necessary—they’re heavier, more expensive, and harder to store.
