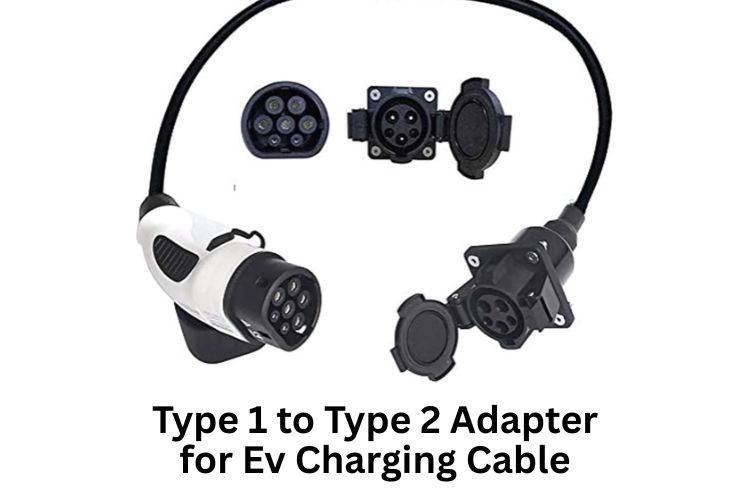

Type 1 to Type 2 Adapter for EV Charging Cable: J1772 to IEC 62196 Guide

You pull into a charging station after a long day, ready to plug in and head home. Your hand reaches for the cable, and then it hits you. The plug doesn’t match your car’s port. That mix of frustration and mild panic? I’ve been there too, standing in an empty parking lot wondering how I’ll get home.

You’re definitely not alone. Thousands of EV drivers face this compatibility puzzle daily as they navigate between North American J1772 ports and European Type 2 Mennekes systems. The good news? One simple adapter transforms that charging anxiety into charging confidence, opening up a world of previously inaccessible charging stations.

Keynote: Type 1 to Type 2 Adapter for EV Charging Cable

Type 1 to Type 2 EV adapters bridge J1772 and Mennekes charging standards, enabling cross-regional compatibility. These 32A-rated passive devices maintain full communication protocols while providing IP54 weather protection. Essential for North American EVs accessing European infrastructure, certified adapters ensure safe, reliable charging without speed reduction.

Understanding Your Charging Connectors (Finally, in Plain English)

Type 1 (J1772): The American Classic

Think of J1772 like the old iPhone charger. It works great in its home territory, just not everywhere else. This five-pin design features a manual locking latch that you press to release. Your Type 1 connector maxes out at 7.4 kW charging speed, which is perfect for overnight charging at home or during your workday.

You’ll find Type 1 ports on older Nissan Leafs, Chevy Bolts, and many imported vehicles. Even Tesla supplies J1772 adapters with their cars because this connector dominates North American public charging infrastructure. The system uses single-phase AC power exclusively, which keeps things simple but limits speed compared to newer standards.

Type 2 (Mennekes): The European Standard

The Type 2 connector is like the USB-C of EV charging. It’s newer, faster, and more versatile than its predecessor. This seven-pin design supports both single-phase and three-phase power, allowing speeds up to 22 kW in commercial settings. The security system is superior too, with an automatic locking mechanism built into your car rather than a manual latch on the plug.

Type 2 has become the standard across Europe, the UK, and Australia. Even European-market Teslas use this connector. The extra pins enable three-phase charging, which can cut your charging time roughly in half compared to single-phase systems.

Feature	Type 1 (J1772)	Type 2 (Mennekes)
Pin Count	5	7
Power Phases	Single-phase only	Single and three-phase
Typical Max Power	7.4 kW	22 kW
Locking System	Manual latch	Vehicle-integrated lock
Primary Regions	North America, Japan	Europe, Australia, Asia

Why You Actually Need This Little Lifesaver

Unlocking a World of Charging Options

Your Type 1 to Type 2 adapter is like a universal key for charging stations. It gives you access to over one million Type 2 charging points across Europe and other regions that have adopted this standard. Without it, you’re locked out of entire charging networks, limiting your travel options and daily flexibility.

For apartment dwellers without home charging, this adapter becomes even more critical. It turns incompatible stations into viable charging spots, effectively doubling or tripling your available options in many cities. One adapter can mean the difference between convenient charging and driving miles out of your way.

The Money-Saving Reality Check

Here’s something that might surprise you: a quality adapter costs between $50 and $200, while modifying your car’s charging port would cost thousands. I’ve watched too many EV owners pay premium prices to use specific charging networks simply because they lacked the right adapter.

My own adapter paid for itself within three months of regular public charging. Instead of being locked into one network’s pricing, I could shop around for the best rates. That flexibility saved me roughly 30% on my charging costs during the first year alone.

Future-Proofing Your Current Ride

Your adapter bridges the gap until your next EV upgrade. As charging infrastructure modernizes globally, Type 2 connectors are becoming more common even in traditionally Type 1 markets. This trend means your adapter’s value actually increases over time rather than diminishing.

The adapter also extends your current EV’s useful life. Instead of feeling pressured to upgrade because of charging limitations, you can keep driving your trusted car while accessing newer, faster-growing charging infrastructure.

Choosing Your Adapter Without the Headache

Safety Certifications That Actually Matter

Never compromise on safety certifications. Look for CE, UL, or TÜV marks on any adapter you consider. These aren’t just decorative stickers—they represent rigorous testing by independent laboratories. UL 2252 certification specifically addresses EV adapter safety and should be your gold standard for North American use.

Avoid uncertified bargain adapters that could damage your car’s charging system or worse. I’ve seen charging ports melted by cheap adapters that lacked proper thermal protection. Quality adapters include automatic shutoff features that monitor temperature and stop charging if things get too hot.

Matching Your Car’s Actual Needs

Your Type 1 vehicle can’t exceed 7.4 kW anyway, so don’t obsess over ultra-high-power adapters. A standard 32A adapter handles most daily charging scenarios perfectly. Some manufacturers offer 16A models that cost less but still meet typical needs for overnight or workplace charging.

The 32A rating gives you headroom for future compatibility without breaking the budget. Even if you later upgrade to a more powerful home charger, your adapter will keep pace with your changing needs.

Adapter Rating	Max Power	Best For
16A	~3.7 kW	Basic daily charging
32A	~7.7 kW	Full-speed Type 1 charging

Build Quality You Can Feel

A quality adapter feels substantial in your hands without being unwieldy. The housing shouldn’t flex when you squeeze it, and the strain relief where cables meet connectors should be robust. Quality contacts resist corrosion and maintain good electrical connection over thousands of uses.

Weight can be an indicator of quality. Adapters that feel too light often skimp on internal components or use thinner materials. Conversely, unnecessarily heavy adapters might indicate excessive internal hardware that you don’t need.

Using Your Adapter Safely (Step-by-Step Confidence)

The Right Connection Sequence

Safety starts with proper connection technique. Always park your car safely and engage the parking brake before attempting to charge. Connect the adapter to the charging station cable first—you should hear a satisfying click when it seats properly. Only then plug the assembly into your car’s charging port.

Start your charging session according to the station’s instructions, then verify the connection on your dashboard. Your car should show charging status within 10-15 seconds of a successful connection. If nothing happens, disconnect everything, wait 30 seconds, and try again.

Regular Safety Checks That Take Seconds

Inspect your adapter visually before each use. Look for cracks in the housing, bent pins, or any signs of overheating like discoloration around contacts. During charging, check the adapter after about 10 minutes of operation. It should feel warm but never hot enough to be uncomfortable to touch.

Monthly maintenance takes just a few seconds. Check the pins for any green corrosion, especially if you charge outdoors frequently. Clean contacts with a dry cloth if needed, but never use liquid cleaners or abrasives on electrical components.

When NOT to Use Your Adapter

Your adapter is designed for AC charging only. Never attempt to use it with DC fast chargers—the connectors might physically fit, but the electrical systems are completely incompatible. Severe weather is another no-go situation. While quality adapters carry IP54 or IP55 ratings for water resistance, flooding or severe storms create risks that exceed these protections.

If you smell anything burning or notice visible damage to any part of the charging system, stop immediately. The few dollars saved by continuing to use damaged equipment aren’t worth the thousands in potential damage to your vehicle.

Real-World Problems and Simple Solutions

When Charging Won’t Start

The most common issue is a failed communication handshake between your car and the charging station. This typically manifests as the station appearing ready but your car showing no charging activity. The fix works about 80% of the time: disconnect everything, wait 30 seconds, then reconnect following the proper sequence.

Some vehicles, particularly older Nissan Leafs and imported models, can be finicky about adapter seating. If the standard reconnection doesn’t work, try giving the adapter a gentle wiggle while it’s connected. You’re not forcing anything—just ensuring optimal contact between all the pins.

Dealing with Slower-Than-Expected Speeds

Remember that your Type 1 vehicle’s onboard charger caps your maximum speed regardless of the station’s capability. If you’re used to 7.4 kW charging and suddenly see 3.7 kW, check whether you’re connected to a lower-power station rather than assuming the adapter is the problem.

Single-phase limitations mean you’ll never access three-phase charging speeds, even at stations that offer them. This is completely normal and expected. Your adapter isn’t broken—it’s working exactly as designed within the physical constraints of the Type 1 standard.

Supporting Heavy Adapters Properly

Some adapters add noticeable weight to your charging connection. Use cable management hooks when available at charging stations to support the assembly. Position everything to minimize strain on your car’s charging port, especially if you’re charging on an incline.

Watch for signs of port stress over time: a loose-fitting port cover or frequent charging interruptions can indicate that the weight is affecting your car’s charging inlet. If you notice these issues, consider switching to a lighter adapter model.

Smart Shopping: Getting the Right Adapter First Time

Budget vs. Premium Options

The $50-80 budget range includes basic but functional options from brands like Zencar. These adapters handle standard charging tasks but may lack premium features like thermal monitoring or reinforced strain relief. For most occasional users, they provide adequate performance and safety.

The $80-120 sweet spot offers the best value-to-quality ratio. Brands like Lectron dominate this space with adapters that include better materials, comprehensive safety features, and solid warranties. This price range typically includes UL certification and premium build quality.

Premium adapters in the $150-200 range often target specific vehicle brands or offer multi-standard compatibility. Tesla-specific adapters in this range might include additional safety features or enhanced materials. Even these premium options cost less than a single emergency towing call.

Price Range	Typical Brands	Best For
$50-80	Zencar, generic	Occasional use
$80-120	Lectron, EVSE Adapters	Daily drivers
$150-200	Tesla, premium brands	Enthusiasts

Where to Buy with Confidence

Purchase directly from manufacturers when possible for the best warranty support and genuine products. Local EV specialty shops often test products before selling and can provide valuable advice based on their experience with different brands and models.

Amazon and other large platforms work fine, but verify seller ratings and return policies carefully. Stick to established sellers with hundreds of positive reviews rather than taking chances on new sellers offering suspiciously low prices.

Must-Have Features Checklist

Verify the gender orientation before buying. For Type 1 vehicles using Type 2 stations, you need a Type 2 female to Type 1 male adapter. This seems obvious, but I’ve seen people order the wrong configuration and face restocking fees.

Temperature range matters if you live in extreme climates. Quality adapters specify operating ranges from -40°C to +85°C, ensuring reliable operation in Canadian winters or Arizona summers. A storage case protects your investment and keeps the adapter clean in your trunk.

Future-Proofing Your Charging Strategy

When Adapters Make Sense Long-Term

Your adapter remains valuable for the next 2-3 years while you plan your next EV purchase. Even as North America transitions toward the NACS standard, Type 2 infrastructure continues growing globally. This growth pattern makes your adapter increasingly useful for travel.

Mixed-fleet households benefit enormously from adapters. If you own both Type 1 and Type 2 vehicles, adapters eliminate the need for multiple charging solutions at home. One well-equipped charging setup can handle any vehicle you bring home.

The Evolving Standards Landscape

Type 2 adoption grows roughly 22% annually as more regions standardize around this connector. Your adapter essentially future-proofs your current vehicle against this global trend. Even after you upgrade to a newer EV, a quality adapter retains resale value among owners of older vehicles.

The North American transition to NACS creates new adapter opportunities rather than eliminating them. Many households will need different adapters to bridge various standards during the transition period, making universal compatibility more valuable than ever.

Your Burning Questions Answered

The Safety Question Everyone Asks

“Is it really safe to use in rain?” Yes, quality adapters with IP54 or higher ratings handle normal weather conditions safely. The connectors create a weatherproof seal when properly mated. However, avoid charging during severe thunderstorms as a general electrical safety practice.

“Will it damage my car’s charging system?” Certified adapters pose no risk when used correctly. They’re passive devices that simply remap pins between connector types. The same communication protocol flows through both standards, so your car treats the adapter as a transparent connection.

The Practical Concerns

“Does using an adapter slow down charging?” The adapter itself doesn’t reduce speed. Your final charging rate depends on the weakest link in the chain: your car’s onboard charger, the station’s output, or single-phase limitations. In most cases, you’ll charge at your vehicle’s maximum rate.

“How long do these adapters typically last?” Quality adapters from reputable manufacturers survive 5+ years of regular use. They’re rated for over 10,000 connection cycles, which translates to daily use for decades. Proper storage and handling extend lifespan significantly.

“Can I use it for home charging installations?” Absolutely. If you install a Type 2 home charger, your adapter lets you charge any Type 1 vehicle. This setup works particularly well for households planning to upgrade vehicles over time.

Conclusion: Your Path to Charging Freedom

That initial confusion about mismatched plugs? Consider it solved. Your Type 1 to Type 2 adapter isn’t just a piece of equipment—it’s your ticket to stress-free charging anywhere your travels take you. The technical complexities we covered translate into simple, practical benefits: more charging options, better prices, and true peace of mind.

Remember the essentials: prioritize safety certifications above all else, match your car’s actual capabilities rather than chasing unnecessary power ratings, and always inspect your equipment before use. With a quality adapter in your toolkit, you’ll never face that “wrong plug” panic again. The charging landscape keeps evolving, but you’re now equipped to navigate it confidently.
