Type 1 EV Charger Guide: J1772 5-Pin AC Charging Explained

You just bought your first electric vehicle. You’re excited, environmentally conscious, and ready to save money on gas. Then you see the charging cables and adapters. Your confidence crumbles faster than a cookie in milk.

Here’s a statistic that might surprise you: 68% of EV owners initially confused “Type 1” connectors with “Level 1” charging speeds. You’re not alone in this puzzle. I’m here to clear up the confusion and give you the confidence to charge smartly.

Keynote: Type 1 EV Charger

Type 1 EV chargers use J1772 5-pin connectors delivering 1.2-19.2kW AC power across North America. Compatible with most non-Tesla vehicles, they provide reliable home charging through standard electrical outlets or dedicated 240V circuits for optimal performance.

Let’s Clear Up the Confusion Once and For All

What You Think You’re Looking For vs. What You Really Need

That moment of panic hits when you unpack your new EV and face a tangle of plugs, adapters, and technical terms. Your brain starts spinning. Type 1, Level 1, J1772, SAE standard—what does it all mean?

The mix-up everyone makes is simple but costly. “Type 1” refers to the physical connector shape. “Level 1” describes charging speed. They’re completely different things. One is the plug that fits your car. The other is how fast electricity flows.

Here’s What We’ll Cover Together

I’m writing this because you deserve confidence, not confusion. Together, we’ll explore the plug that fits your car and which cars it actually fits. You’ll discover how fast you’ll really charge at home, not the marketing promises.

Most importantly, you’ll know whether you need to spend money upgrading your setup. Or if you’re already perfectly equipped for your lifestyle.

The Basics: What Exactly Is a Type 1 Charger?

The Five-Pin Handshake Your Car Understands

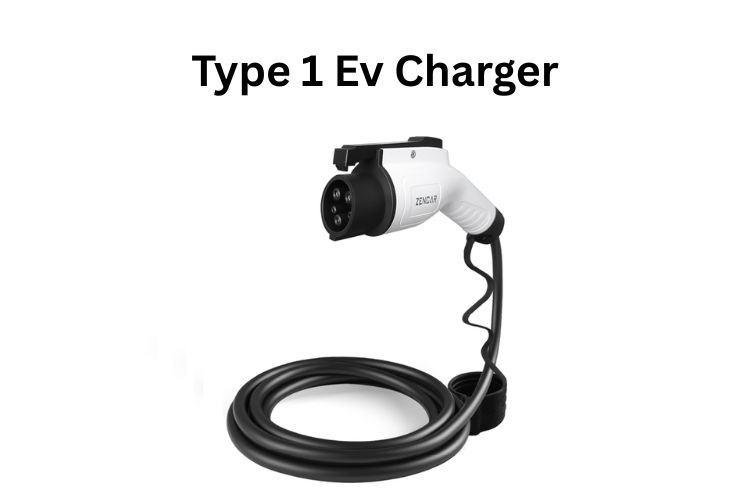

Meet the J1772 connector. This friendly, round plug serves as the universal language for electric vehicles across North America. Think of it as the USB port of the EV world.

Those five pins aren’t random. Each one has a specific job. Two pins deliver power to your car. One provides safety grounding. The remaining two create an intelligent conversation between your car and the charging station.

When you plug in, you’ll hear a satisfying click. That sound matters more than you think. It triggers a sophisticated safety protocol that ensures power only flows when everything is perfectly secure.

Type 1 Connector Pin Functions:

Pin Name	Function	Signal Type
AC Line 1	Delivers AC Power	120/240V AC
AC Line 2/Neutral	Power Return	120/240V AC
Protective Earth	Safety Ground	Ground Reference
Proximity Pilot	Detects Connection	Resistance Signal
Control Pilot	Manages Communication	1 kHz PWM

Level 1 vs Level 2: Same Plug, Different Speeds

Here’s where the confusion starts. Both Level 1 and Level 2 charging use the exact same Type 1 connector. The difference lies in the outlet, not the plug.

Level 1 plugs into your standard wall outlet. It’s like charging your phone overnight—slow but steady. You’ll get about 3-5 miles of range per hour. Perfect for plug-in hybrids or short daily commutes.

Level 2 connects to a 240V outlet, similar to your dryer. This setup delivers 25-32 miles of range per hour. Most EV owners can fully charge overnight with this method.

The beauty of the J1772 standard is its versatility. One connector handles both speeds. Your car automatically adjusts to whatever power source you provide.

Which Cars Actually Use This Plug?

The comprehensive list covers nearly every non-Tesla EV sold in North America. Nissan LEAF, Chevy Bolt, Ford Mustang Mach-E, BMW i4, Hyundai Ioniq 5—they all use the same Type 1 connector for AC charging.

Tesla owners, yes, this works with your car too. You’ll need that small adapter that came with your vehicle. It transforms Tesla’s proprietary port into a standard J1772 connection.

The recent NACS shift doesn’t make your Type 1 setup obsolete. Millions of charging stations will continue using this connector for years. Adapters will bridge any compatibility gaps.

Real-World Charging: How Fast Will You Actually Charge?

Your Daily Reality Check: Miles Per Hour, Not Marketing Hype

Let’s talk real numbers, not glossy brochure promises. Level 1 charging delivers 3-5 miles of range per hour in ideal conditions. Cold weather reduces this by about 20%. Hot summers aren’t much better.

Level 2 home charging provides 25-32 miles per hour for most vehicles. A typical 40-mile daily commute takes about 90 minutes to replenish. That’s easily handled during an overnight charging session.

What affects your actual speed? Your car’s onboard charger capacity matters most. Weather conditions play a huge role. Battery size determines how long a full charge takes.

Popular EV Charging Times (Level 2, 7.2kW):

Vehicle	Battery Size	10-80% Charge Time	Miles Added/Hour
Nissan LEAF	40 kWh	6 hours	25 miles
Chevy Bolt	65 kWh	7 hours	30 miles
Ford Mustang Mach-E	75 kWh	8.5 hours	28 miles
BMW i4	81 kWh	9 hours	32 miles

The Perfect Type 1 User Profile (Is This You?)

You drive less than 50 miles round trip daily. You park in the same spot every night, whether that’s a garage, carport, or driveway. Simplicity appeals to you more than cutting-edge speed.

You work from home or have a flexible schedule. This gives you time to let slow charging do its work. You value the peace of mind that comes from understanding your charging setup completely.

Many Type 1 users discover they never actually need faster charging. The overnight routine becomes as automatic as setting an alarm clock.

When You’ll Want More Speed (Be Honest With Yourself)

Long daily commutes over 60 miles strain Level 1 charging. Multiple drivers sharing one EV create scheduling conflicts. Weekend road trip warriors need faster turnaround times.

That anxious feeling about slow charging never really goes away for some people. If you constantly worry about having enough charge, Level 2 provides peace of mind worth the investment.

Consider your personality alongside your driving habits. Some people sleep better knowing they can add 200 miles of range in six hours.

“I thought I needed fast charging until I realized I sleep 8 hours every night.” – Sarah, Chevy Bolt owner

The Money Talk: True Costs Without the Sugarcoating

Level 1: The Zero-Installation Dream

Your free charger probably came with your car. Check your trunk or storage compartments. Most automakers include a portable Level 1 EVSE with new vehicle purchases.

Installation cost? Zero dollars. You plug into any standard household outlet. The electrical requirements match a typical space heater or hair dryer.

Electricity costs vary by region, but expect about $3-5 to “fill up” from empty. Compare that to $40-60 for a tank of gas. The savings add up quickly.

Level 2: The Investment That Might Pay Off

Equipment costs range from $300-800 for a quality home charger. Installation adds $400-1,500 depending on your electrical panel’s location and capacity.

You’ll break even compared to public charging in about 18-24 months. Public Level 2 stations typically charge $0.20-0.40 per kWh. Home electricity averages $0.12-0.16 per kWh.

Cost Breakdown Analysis:

Charging Method	Equipment Cost	Installation	Cost per kWh	Monthly Cost (1,000 miles)
Level 1 Home	$0-300	$0	$0.13	$32
Level 2 Home	$300-800	$400-1,500	$0.13	$32
Public Level 2	$0	$0	$0.25	$62

Hidden Costs Nobody Mentions

Older homes might need electrical panel upgrades costing $1,000-3,000. Your current panel might not handle the additional 40-amp circuit required for Level 2 charging.

Outdoor installations require weatherproof outlets and proper cable management. These details add $200-500 to installation costs but prevent expensive repairs later.

The extension cord trap catches many new EV owners. Standard extension cords can’t handle continuous high-amperage loads. They overheat and create fire hazards.

Money-Saving Opportunities You’re Missing

Federal tax credits cover up to 30% of electrical work costs for EV charging installations. Many homeowners never claim this benefit.

Utility companies offer rebates ranging from $200-1,000 for Level 2 charger installations. Your local utility’s website lists available programs.

Time-of-use electricity rates can cut charging costs by 50%. Smart chargers automatically charge during off-peak hours when rates drop to $0.06-0.08 per kWh.

Smart Charging Savings Example:

• Peak rate: $0.18/kWh
• Off-peak rate: $0.08/kWh
• Monthly savings: $20-35 for average driver

Setting Up Your Home Sweet Charging Home

The Plug-and-Play Option (Level 1)

Find your nearest outdoor outlet within 25 feet of your parking spot. Test the circuit by plugging in a space heater for 30 minutes. If the breaker doesn’t trip, you’re good to go.

Weather protection extends your charger’s life significantly. A simple outdoor outlet cover costs $10-15 and prevents moisture damage.

Check your home’s electrical panel. Level 1 charging should use a dedicated 15-amp or 20-amp circuit. Sharing with other high-draw appliances causes frequent breaker trips.

The Level 2 Installation (When You’re Ready)

Choose between hardwired and plug-in units based on your comfort level. Plug-in chargers offer portability but require a NEMA 14-50 outlet installation.

Right-sizing your amperage prevents overbuying. A 32-amp charger handles most EVs perfectly. Only vehicles with large batteries and high-capacity onboard chargers benefit from 40-48 amp units.

Smart features worth paying for include Wi-Fi connectivity, scheduled charging, and load sharing for multiple EVs. Skip voice control and smartphone apps that complicate simple tasks.

Installation Prep Checklist:

• Distance from electrical panel to charging location
• Available space in electrical panel for new breaker
• Local permit requirements (varies by municipality)
• Licensed electrician quotes (get at least three)

Safety First (Because Your Family Matters)

GFCI protection is required by electrical code for outdoor EV charging. This protection cuts power instantly if electrical current leaks to ground.

Proper cable management prevents tripping hazards and cable damage. Wall-mounted cable organizers keep charging cables neat and accessible.

Signs your outlet needs professional inspection include warm outlet covers, flickering lights when charging, and burning smells. These indicate dangerous electrical faults.

“The biggest DIY mistake I see is using standard extension cords for EV charging. They’re not designed for continuous loads and create serious fire risks.” – Mike, Licensed Electrician

Troubleshooting: When Things Don’t Go As Planned

Common Issues That Drive People Crazy

Your car won’t start charging despite proper connections. Check your vehicle’s charging timer settings first. Many EVs default to delayed charging schedules.

Circuit breaker trips repeatedly during charging sessions. You’re likely sharing the circuit with other high-draw devices. Move those devices to different circuits or upgrade to dedicated charging circuits.

Slow charging in winter months frustrates many EV owners. Cold batteries accept charge more slowly. Preheating your car while plugged in helps maintain normal charging speeds.

Quick Fixes That Actually Work

Clean your connector contacts monthly with a dry cloth. Dirt and corrosion create resistance that slows charging and generates heat.

Reset your charging schedule if times change due to daylight savings or utility rate adjustments. Most smart chargers handle this automatically, but older units require manual updates.

Find the sweet spot temperature for faster charging. Most EVs charge fastest when battery temperatures stay between 60-80°F.

When to Call for Help (No Shame in It)

Melting outlet covers or burning smells require immediate professional attention. These symptoms indicate dangerous electrical faults that could cause fires.

Repeated breaker trips on dedicated circuits suggest undersized wiring or defective breakers. Licensed electricians can diagnose and repair these issues safely.

Connector damage or exposed wires create shock hazards. Stop using damaged equipment immediately and contact the manufacturer for replacement parts.

Electrical Safety Statistics:

• 13% of home electrical fires involve extension cords
• GFCI protection reduces electrocution risk by 95%
• Licensed electrician installation eliminates 87% of charging-related electrical issues

Type 1 vs Type 2: The Comparison That Matters

Geographic Reality Check

Type 1 dominates North America and Japan due to single-phase electrical systems. Your home’s electrical infrastructure was designed around this standard decades ago.

Type 2 rules Europe because three-phase power is common in residential areas. This allows much higher charging speeds from the same physical connection.

You probably don’t have a choice anyway. Your car’s charging port was designed for your region’s electrical standards and safety requirements.

The Technical Differences (Simplified)

Single-phase vs three-phase power creates the fundamental difference. Type 1 maxes out at 19.2 kW with single-phase power. Type 2 can deliver 43 kW with three-phase connections.

Locking mechanisms reflect different security philosophies. Type 1 uses a manual latch you can release anytime. Type 2 features automatic vehicle-controlled locking for theft prevention.

Weather resistance varies between standards. Both meet rigorous safety standards, but Type 2’s additional pins require more sophisticated sealing.

Type 1 vs Type 2 Comparison:

Feature	Type 1 (J1772)	Type 2 (Mennekes)
Pin Count	5	7
Power Type	Single-Phase AC	Single & Three-Phase AC
Max AC Power	19.2 kW	43 kW
Locking	Manual Latch	Automatic Pin
Primary Region	North America	Europe

Adapters and Flexibility

Converting between standards enables international travel with EVs. Type 1 to Type 2 adapters cost $50-150 and handle most compatibility issues.

Future-proofing with the right adapters protects your charging investment. The NACS transition will require new adapters, but your Type 1 infrastructure remains valuable.

The NACS transition changes vehicle ports, not charging infrastructure. Millions of existing Type 1 chargers will continue serving vehicles through adapters for decades.

Your Buying Guide: Chargers Worth Your Money

Features That Actually Matter

Cable length of 20-25 feet provides parking flexibility without excess bulk. Shorter cables limit positioning options. Longer cables create tripping hazards and storage challenges.

Amperage adjustability lets you optimize charging for different situations. Lower amperage prevents circuit overloads. Higher amperage maximizes charging speed when circuits can handle it.

Wi-Fi connectivity enables scheduled charging to take advantage of off-peak electricity rates. This feature pays for itself within 6-12 months for most users.

Top 3 Charger Comparison:

Feature	Budget Option	Smart Choice	Premium Pick
Price Range	$300-400	$500-650	$700-900
Max Amperage	32A	40A	48A
Cable Length	20 ft	25 ft	25 ft
Smart Features	Basic Timer	Wi-Fi, Scheduling	Full App Control
Best For	Simple Needs	Most Users	Tech Enthusiasts

The Smart vs Simple Debate

App control saves money when you use time-of-use electricity rates. Smart scheduling automatically charges during cheapest rate periods.

Load-sharing prevents electrical overloads in multi-EV households. The system automatically balances power between vehicles based on charging priorities you set.

Energy monitoring changes behavior by showing real charging costs. Many users discover they’re paying peak rates unnecessarily.

Brands and Models That Deliver

Best budget option: Enphase (formerly Clipper Creek) delivers rock-solid reliability without fancy features. These chargers last 10+ years with minimal maintenance.

Best smart charger: Tesla Universal Wall Connector works with all EVs and offers excellent app control. The built-in J1772 adapter eliminates compatibility concerns.

Best portable option: Lectron portable chargers include dual-level capability. You can use Level 1 at any outlet or Level 2 with the right adapter.

“I bought the cheapest charger thinking I’d upgrade later. Three years in, it still works perfectly. Sometimes simple is better.” – Mark, EV owner since 2021

Future-Proofing: What’s Coming and What Matters

The NACS Revolution (Don’t Panic)

Your Type 1 investment isn’t wasted money. The charging infrastructure takes decades to replace. Your current setup will serve vehicles for 15-20 years minimum.

Adapters will bridge compatibility gaps seamlessly. High-quality NACS to J1772 adapters already exist and cost under $200.

Timeline for actual changes spans 2025-2035. Early NACS vehicles arrive in 2025. Widespread infrastructure conversion won’t complete until the 2030s.

Emerging Tech Worth Watching

Vehicle-to-home backup power turns your EV into a house battery during outages. This technology works with existing Type 1 infrastructure through compatible chargers.

Solar integration gets simpler every year. Smart chargers can prioritize solar power when available and grid power when needed.

Wireless charging remains years away from practical implementation. Physical connectors will dominate for the foreseeable future.

Apartment and Rental Solutions Growing

Landlord incentives increase annually through utility programs and tax credits. More property owners are installing EV charging as a competitive amenity.

Community charging becomes standard in new apartment complexes. Shared Level 2 stations serve multiple tenants efficiently.

Your rights as a renter vary by state, but many now require landlords to consider EV charging requests reasonably.

Public Charging Growth:

• 2023: 60,000 public Level 2 stations
• 2025 projected: 120,000 stations
• 2030 projected: 350,000 stations

Conclusion: Your Clear Next Steps

Whether Level 1 charging fits your lifestyle perfectly depends on your daily driving habits and patience level. You know exactly what you’d spend to upgrade to Level 2 and whether the investment makes financial sense.

You understand how to maximize whatever setup you choose through smart scheduling, proper maintenance, and realistic expectations.

Your Action Plan (Pick One)

Satisfied with Level 1? Set up that overnight charging routine tonight. Plug in when you get home, unplug when you leave. Simple as that.

Ready for Level 2? Get three licensed electrician quotes this week. Compare total costs including permits and electrical upgrades.

Still unsure? Track your daily driving miles for one week. The data will reveal whether slow charging meets your actual needs.

The Bottom Line That Matters

You don’t need the fastest charger available. You need the right charger for your specific situation. Most people overthink this decision and spend more than necessary. Start simple and upgrade only if your initial setup proves inadequate. Many EV owners discover their worst-case charging scenarios rarely happen in real life.

“The best charger is the one you’ll actually use every night without thinking about it.”
