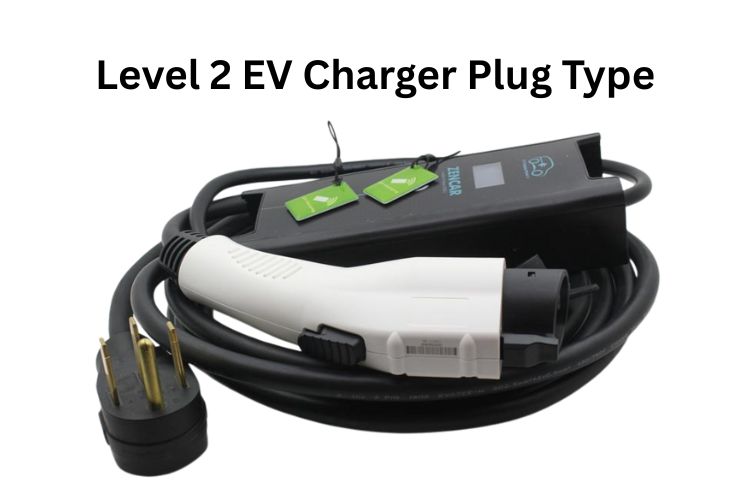

Level 2 EV Charger Plug Types: J1772, NACS & Type 2 Guide

You just bought your dream electric vehicle. Now you’re staring at a wall of outlet options and plug types, feeling like you need an engineering degree just to charge your car. Here’s a stat that might surprise you: 68% of new EV owners waste money on the wrong charging setup because they didn’t match their plug type to their vehicle. I’m here to fix that.

The confusion ends today. You’ll learn exactly which plug fits your car’s charging port, how to match your home’s electrical setup to your EV’s needs, and which choice saves you hundreds three years from now.

Keynote: Level 2 EV Charger Plug Types

Level 2 EV chargers use region-specific plugs: J1772 dominates North America (except Tesla’s NACS), Type 2 rules Europe with three-phase capability, and GB/T serves China. Wall outlets are typically NEMA 14-50 or hardwired 240V circuits. Always match your charger to your vehicle’s inlet and verify electrical capacity before installation.

Why Your EV Charging Plug Feels Like a Riddle (And How We’ll Crack It Together)

The Two-Part Puzzle That Trips Everyone Up

You’re staring at plug options, and suddenly charging your car feels harder than programming your old VCR. Here’s the relief: one plug connects to your wall, the other to your car. We’ll untangle both right now.

Get this wrong and you’ll waste hundreds on adapters or redo installation from scratch. I’ve seen homeowners spend $2,500 fixing a simple mistake that could have been avoided with ten minutes of reading.

What You’ll Walk Away Knowing

Which plug fits your car’s charging door without guesswork or panic. You’ll match your home’s electrical setup to your EV’s appetite in minutes.

The future-proof choice that saves you money three years from now when charging standards evolve. By the end of this guide, you’ll make confident decisions that feel obvious in hindsight.

What “Level 2” Actually Means (And Why It’s Your Sweet Spot)

The Power Behind the Name

Level 2 delivers 208 to 240 volt AC power, charging most EVs fully in 4 to 10 hours overnight. Think of Level 1 as a garden hose, Level 2 as a firehose: same water, wildly different speed.

Your car’s onboard charger decides the final speed, not just the plug type. This matters because a 19.2 kW wall unit won’t charge faster if your car maxes out at 7.2 kW.

Level 2 power ranges from 3 kW to 19.2 kW in North America. In Europe, three-phase systems push it to 22 kW for public stations.

Why This Matters More Than Fast Charging Hype

You’ll do 80% of your charging at home while you sleep, not scrambling at public stations. Level 2 hits the sweet spot: fast enough to wake up full, gentle enough to preserve battery health over years of use.

Installation costs stay reasonable compared to the electrical gymnastics DC fast charging demands. A typical Level 2 home setup runs $500 to $2,000 total, while DC fast charging requires commercial-grade infrastructure costing tens of thousands.

Ready to see how simple tweaks can save you real money? Let’s dive into the car-side connectors first.

The Car-Side Story: Which Plug Fits Your Vehicle’s Charging Door

J1772—The Friendly Round Plug Everyone Recognizes

Where You’ll See This Five-Pin Circle

Almost every non-Tesla EV sold in North America since 2010 uses this connector. Public Level 2 stations coast to coast speak J1772, making road trips predictable and stress-free.

That side-flap design locks your cable in place like a reassuring handshake. The J1772 is the universal language of North American EV charging for Nissan, Chevrolet, Ford pre-2025, BMW, and dozens more brands.

What Makes It Tick

Single-phase AC connector handling 24 to 80 amps continuously, maxing around 19.2 kW. Works for both Level 1 trickle charging overnight and Level 2 faster fills at public stations.

The five pins include two power lines, one ground, and two communication pins. The Control Pilot pin runs a digital handshake that confirms safe connection before power flows.

Most home installations deliver 7.2 kW to 11.5 kW with J1772. That translates to 20 to 30 miles of range added per hour, perfect for overnight charging after your commute.

NACS—The Sleek Tesla Connector Taking Over

From Tesla Exclusive to Industry Standard

This compact oval plug handles AC Level 2 and DC fast charging in one elegant port. SAE officially standardized it as J3400 in 2024, and federal funding now backs it for public infrastructure.

Ford, GM, Hyundai, Kia, Rivian: everyone’s jumping on board for 2025 and later models. By 2027, NACS will be the dominant connector for new North American EVs, ending a decade of Tesla exclusivity.

Tesla opened its connector design in November 2022, rebranding it from proprietary to open standard. The move unlocked access to 15,000 Supercharger locations for competing brands.

Why Car Companies Can’t Resist

Smaller, lighter, fewer parts to break or weather-damage over years of use. The NACS plug is roughly 40% smaller than a J1772 connector, making it easier to handle in rain or cold.

Opens access to Tesla’s massive Supercharger network, the gold standard for reliability with 99.5% uptime. One port for every charging scenario eliminates the CCS combo-connector awkwardness that frustrated drivers.

For Level 2 home charging, NACS delivers up to 11.5 kW at 48 amps. That’s identical to high-power J1772 stations but in a more compact, user-friendly package.

How to Know Which One Lives on Your Car

Pop open your charging door and study the shape: round with multiple holes means J1772. You’ll see five distinct pin positions arranged in a circle with a flat top.

Slim oval port that looks almost futuristic? That’s NACS staring back at you. It’s noticeably smaller and sleeker than J1772.

Still unsure? Check your owner’s manual under charging specifications or snap a photo and compare online. Most manufacturer websites show clear diagrams of their charging port types.

Europe and Beyond: Type 2 Mennekes Enters the Chat

Where This Seven-Pin Hero Dominates

EU, UK, Australia, and most global markets default to Type 2 for AC charging. The European Commission mandated it in 2013, creating a unified charging ecosystem across the continent.

Supports both single-phase and three-phase power, pushing up to 22 kW at public wallboxes. Brands like BMW, Audi, Mercedes-Benz, Volkswagen, and Renault all use Type 2 for European models.

Pairs with CCS2 for DC fast charging, creating Europe’s unified connector ecosystem. Even Tesla uses Type 2 for its Model 3 and Model Y sold in Europe.

What Changes When You Travel

Public stations provide the socket; you bring the correct cable for your car’s inlet. European charging requires you to carry your own cable, unlike North America where cables are attached.

Type 2 cables won’t mate with J1772 or NACS ports without bulky, expensive adapters. If you split time between continents, carry region-specific cables or suffer range anxiety at incompatible stations.

The three-phase capability is Type 2’s superpower. A 22 kW station can add 78 miles in just one hour, making AC charging viable for quick shopping stops.

The Adapter Moment: Making Incompatible Plugs Talk to Each Other

Using Your J1772 Car at a NACS Home Charger

Simple, affordable adapters enable full AC Level 2 speeds for $40 to $100. These passive devices require no electronics, just pin mapping from one connector shape to another.

Verify amp limits first: stacking adapters creates heat points and potential failure zones. Never exceed your vehicle’s onboard charger rating or the adapter’s continuous amp specification.

Check fit and temperature during your first few charging sessions, then relax. Touch the adapter mid-charge: warm is normal, hot means immediate disconnect and replacement.

Using Your NACS Car at J1772 Public Stations

Most Teslas include a J1772 adapter in the glovebox or frunk from day one. This little tool unlocks access to tens of thousands of existing Level 2 stations instantly.

Newer Ford and GM NACS vehicles either include adapters or make them available cheap through dealerships. The adapters cost $50 to $200 and pay for themselves in expanded charging access.

I’ve used my Tesla adapter hundreds of times without issue. It adds two seconds to the plug-in process and charges at full speed every time.

The “Auto-Adapter” Ports Arriving Now

Cutting-edge stations detect your connector type and deliver the right plug automatically. No more fumbling with adapters in rain or darkness, just plug and charge seamlessly.

Expect these at premium commercial sites first, spreading to everyday spots by 2027. Early installations from ChargePoint and EVgo are testing this technology at airport and mall locations.

The future is plug-agnostic stations that work with everything. Until then, a simple adapter keeps you charging anywhere.

The Wall-Side Story: NEMA Outlets and Hardwired Choices

NEMA 14-50—The Gold Standard for Plug-In Charging

Why Electricians Recommend This Four-Prong Outlet

Delivers 40 amps continuous on a 50-amp circuit, charging most EVs in 6 to 8 hours overnight. Looks like your dryer outlet but configured differently: don’t assume they’re interchangeable without checking.

Provides both 240V hot legs plus neutral and ground for maximum charger compatibility. The four-prong design supports smart chargers that need 120V for logic circuits and WiFi.

Installation typically costs $300 to $800 depending on distance from your electrical panel. Permits add $50 to $200 in most jurisdictions.

The Flexibility Factor

Unplug your charger and take it to a vacation rental or new house when you move. This portability saves thousands compared to leaving a hardwired unit behind.

Easier to replace or upgrade without calling an electrician for hardwiring rework. Swap chargers in five minutes if you upgrade your EV or want new features.

Lower upfront installation cost, typically $200 to $400 less than hardwired alternatives. You’re paying for the outlet, not custom electrical work to the charger itself.

NEMA 6-50—The Three-Prong Workshop Alternative

When You’ll Encounter This Outlet

Common in garages with existing welding equipment or heavy-duty power tools. Same 50-amp circuit and charging speed as 14-50, just missing the neutral wire.

Some older homes have these already installed, saving you installation money entirely. If your garage has a 6-50 from a previous welder or air compressor, you’re halfway done.

The Compatibility Catch

Not every Level 2 charger works without a neutral wire: verify before purchasing. Chargers with built-in WiFi, displays, or 120V convenience outlets need that neutral.

No neutral means losing smart features on certain charger models that need 120V logic circuits. Basic charging works fine, but app connectivity and scheduling may not.

Hardwired Installation—The Permanent Power Solution

When This Makes Perfect Sense

You’re staying put for 5 years or more and want the cleanest, most integrated look. Hardwired units mount flush and blend into your garage like built-in appliances.

Your EV accepts more than 40 amps and you want maximum charging speed up to 48 amps. Only hardwired installations safely support the highest continuous amperage.

Fewer connection points mean less heat buildup and improved long-term reliability. Every plug creates resistance; hardwired eliminates one potential failure point.

What You’re Trading Away

Leave the charger behind when you move: it’s part of the house now. That $1,200 charger becomes a selling feature, not something you pack in the moving truck.

Swapping or upgrading requires an electrician visit and new permits costing $300 to $600. Technology changes fast; hardwired units are harder to replace.

Adds $300 to $600 to installation versus running wire to an outlet. You’re paying for direct connection and the labor to do it to code.

Power, Speed, and the Bottleneck Nobody Warns You About

Your Car’s Onboard Charger Is the Speed Limit

If your EV maxes out at 7.2 kW, a fancy 19.2 kW wall unit won’t charge faster. Check your manual for onboard charger capacity: that number matters more than EVSE power ratings.

Common ranges are 3.3 kW for older budget EVs, 7.2 to 11 kW for standard models, and 11 to 19.2 kW for premium EVs. A Nissan Leaf has a 6.6 kW onboard charger; a Tesla Model 3 Long Range has 11.5 kW.

Real-world example: my neighbor installed a $1,400 charger rated for 48 amps. His Chevy Bolt maxes at 32 amps, wasting $600 on capacity he can’t use.

Why “Miles Per Hour” Feels Like a Moving Target

Voltage fluctuations at your site, cable quality, and outside temperature all steal efficiency. Cold weather can reduce charging efficiency by 20% as the battery warms itself.

Battery state-of-charge taper means the last 20% always fills slower than the first 80%. This protects battery health but extends total charging time beyond simple math.

Real-world expectation: J1772 at 7.7 kW adds 25 to 30 miles per hour, not the advertised 35. Manufacturers quote ideal conditions; your garage in January won’t match lab testing.

Realistic Level 2 Numbers You Can Quote

Continuous amp range: 24 to 80 amps depending on circuit and charger rating. Most home setups land at 32 to 48 amps for practical reasons.

Headline power output: 5 to 19.2 kW with most home setups landing at 7.2 to 11.5 kW. Public stations sometimes offer higher, but your car’s onboard charger limits the benefit.

Overnight charging for 8 hours delivers 200 to 280 miles of range for typical EVs. That’s more than enough for daily driving with room to spare.

Installation Day: What Your Electrician Needs (And What Might Surprise You)

The Electrical Panel Capacity Reality Check

Homes built after 2000 usually handle a 40 to 50 amp Level 2 circuit without breaking a sweat. Modern 200-amp panels have headroom for EV charging alongside other loads.

Older panels might need expensive upgrades costing $800 to $2,500 before charging begins. Homes with 100-amp service often max out with central air, electric heat, and normal appliances.

Free assessment from licensed electrician reveals your exact situation: never skip this step. They’ll measure total load, check breaker space, and estimate costs before you commit.

Permit Requirements Nobody Mentions Upfront

Most cities require electrical permits for new 240V circuits, adding 1 to 2 weeks to timeline. The permit process involves plan submission, inspection scheduling, and final approval.

Permit fees range from $50 to $300 depending on location and circuit complexity. Urban areas charge more; rural jurisdictions are often simpler and cheaper.

Skipping permits risks voided home insurance and failed inspections when selling later. Future buyers will ask for permits during home sales; missing documentation kills deals.

The GFCI Protection Confusion That Causes False Trips

New electrical code mandates GFCI breakers for plug-in EV outlet installations since 2023. These safety devices protect against ground faults but sometimes clash with charger electronics.

These safety devices sometimes false-trip with certain charger models, creating frustration overnight. You wake up to an uncharged car because the breaker tripped at 2 AM.

Hardwired installations often sidestep this issue entirely: discuss options with your electrician before deciding. They can recommend compatible equipment or alternate protection methods.

The 2024–2025 NACS Shift: Why This Plug Keeps Showing Up Everywhere

From Tesla Proprietary to Federal Standard

NACS earned SAE standardization as J3400, making it an official industry connector in June 2024. Government infrastructure funding now prioritizes NACS-compatible charging stations for federal grants.

Legacy J1772 stations aren’t disappearing, but new installs favor dual-plug or NACS-primary designs. The Infrastructure Investment and Jobs Act allocates billions to NACS-equipped highway corridors.

Tesla’s Supercharger network boasts 99.5% uptime compared to 85% for legacy networks. Reliability drove adoption faster than any technical specification could.

Which Automakers Are Making the Jump

Ford, GM, Rivian, Hyundai, Kia, Polestar, Volvo all announced NACS adoption for 2025 and later models. Ford started the avalanche in May 2023; competitors followed within months.

Even reluctant holdouts face pressure as charging networks optimize for one dominant standard. Stellantis and Volkswagen are evaluating NACS for 2026 model years.

By 2027, expect NACS to be the de facto North American connector for new EVs. Legacy vehicles will keep J1772 alive for another decade, but new sales will tilt heavily toward NACS.

What This Changes in Your Driveway

More wall chargers ship NACS-ready with included J1772 adapters for backward compatibility. You buy one charger that handles both standards seamlessly.

Your current J1772 setup won’t become obsolete: adapters bridge the gap affordably for $50 to $150. No need to panic and replace functional equipment.

Installing ample circuit capacity now beats replacing your entire charging setup later. Run 50 or 60-amp circuits even if you only need 40 amps today.

Your Simple Buying Decision Tree: Which Plug Type Should You Buy?

If Your Car Has a J1772 Inlet Right Now

Buy a J1772 EVSE or a NACS charger with a quality adapter included from the manufacturer. Stick with reputable brands like ChargePoint, JuiceBox, or Grizzl-E.

Match charger amps to your car’s onboard charger rating: no point overbuying capacity you can’t use. A 32-amp charger costs $400; a 48-amp unit costs $700 but offers no benefit if your car maxes at 32 amps.

Choose plug-in NEMA 14-50 for flexibility or hardwired for maximum power and clean aesthetics. Renters and frequent movers go plug-in; long-term homeowners consider hardwired.

If Your Car Has a NACS Inlet Today

Grab a NACS wall connector for seamless, no-adapter home charging direct from Tesla, ChargePoint, or Emporia. Prices range from $450 to $800 depending on features.

Keep a J1772 adapter in your trunk for legacy public stations: most Teslas ship with one included. Third-party options cost $60 if you need a spare.

Hardwired NACS units from Tesla and ChargePoint deliver the fastest home charging available at 48 amps. The Tesla Wall Connector is the most popular choice at $475 before installation.

If You’re Buying Your First EV Next Month

Check the charging port type on your confirmed order: don’t trust marketing promises or verbal commitments. Look at the official window sticker or build sheet.

Most 2025 models still arrive with J1772; NACS rollout happens gradually through 2027 as production lines retool. Early adopters get NACS; mainstream models lag 12 to 24 months.

Buy for the car in your driveway, not the one you might own three years from now. Adapters are cheap insurance if standards shift.

Safety and Reliability Notes Most Guides Skip

Cable and Connector Discipline

Use only EV-rated cables that match your breaker and EVSE continuous amp ratings perfectly. Undersized cables create fire hazards; oversized breakers won’t trip during faults.

Avoid daisy-chaining adapters: each connection point adds heat and failure risk exponentially. One adapter is safe; two stacked adapters are asking for trouble.

Inspect plugs and cables quarterly for melting, corrosion, or loose connections that indicate problems. Look for discolored plastic, bent pins, or resistance when plugging in.

Weather and Enclosure Protection

Mount outdoor chargers in NEMA 3R or better rated enclosures designed for rain, snow, and sun. The charger itself might be weatherproof, but connections need extra protection.

Keep plugged-in connectors off the ground to prevent dust, moisture, and critter damage overnight. Wall-mounted holsters or hooks protect the vehicle connector between charging sessions.

Consider a holster or hook for the vehicle-side connector when not actively charging. Letting it dangle or sit on the garage floor invites damage and contamination.

The Adapter Temperature Test

During your first three charging sessions with any adapter, touch it mid-charge after 30 minutes. Warm to the touch is normal, but hot or any plastic smell means immediate disconnect.

Quality adapters from reputable brands cost $40 to $100; cheap knockoffs risk fire hazards overnight. Don’t gamble with $20 Amazon specials from unknown manufacturers.

I learned this the hard way: a cheap adapter melted slightly during its third use. The $75 TeslaTap replacement has worked flawlessly for two years since.

Quick Glossary: The Terms That Matter in One Breath

J1772 / Type 1

North American AC connector standard for Level 1 and Level 2 charging since 2010. Round 5-pin design handling up to 80 amps and 19.2 kW maximum.

NACS / SAE J3400

Tesla-designed plug now industry-standardized, handles AC Level 2 and DC fast charging in one compact connector. Officially standardized in June 2024.

Type 2 / Mennekes

European AC charging connector supporting single or three-phase power up to 22 kW commonly. Seven pins with vehicle-controlled automatic locking for security.

NEMA 14-50

Four-prong 240V outlet delivering 40 amps continuous, the home EV charging gold standard in North America. Same voltage as electric dryer outlets but different pin configuration.

Onboard Charger

Your car’s internal component converting AC to DC; this determines your actual charging speed regardless of EVSE power. Ranges from 3.3 kW to 19.2 kW depending on vehicle model.

Conclusion: You’re Ready to Plug In With Confidence

Match your home charger to the inlet on your car today, knowing adapters solve future compatibility affordably. Don’t overthink the NACS transition: buy what works now and adapt when needed.

Installation quality matters more than plug type for safety, reliability, and years of worry-free charging. A properly installed 32-amp J1772 charger beats a sketchy 48-amp setup every time.

Your Next Step Feels Easy Now

Snap a photo of your car’s charging port and measure the distance to your ideal charger location. Most installations run 10 to 50 feet of conduit from panel to garage wall.

Get quotes from licensed electricians for both plug-in and hardwired options within the next week. Three quotes reveal fair market pricing and catch potential panel issues early.

Choose the setup that fits your budget, timeline, and five-year life plan, then enjoy the quiet satisfaction of waking up to a full battery every morning.
