You just drove your shiny new EV home, feeling proud about joining the electric revolution. Then reality hits. You’re staring at your garage wall, wondering which outlet can actually charge this thing without taking three days to fill up.
Here’s a statistic that might surprise you: 68% of new EV owners feel overwhelmed by home charging setup. But here’s the relief I’m promising you today. Understanding EV charger outlet types isn’t rocket science. It’s actually simpler than choosing the right phone charger once you know what to look for.

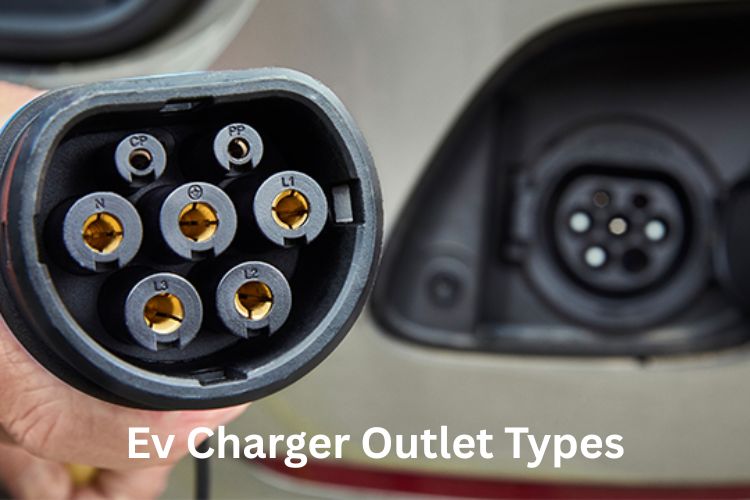

Keynote: EV Charger Outlet Types
EV charger outlet types range from standard 120V NEMA 5-15 (3-5 miles/hour) to powerful 240V options like NEMA 14-50 (30+ miles/hour). Choose based on daily driving distance, existing garage infrastructure, and budget. Level 2 charging (240V) transforms EV ownership experience significantly.
Let’s Solve the Outlet Puzzle Together
That “Which Plug?” Moment We All Face
I get it. You’re excited about your EV but suddenly wondering if your garage is even ready. It’s like getting a new phone without the right cable. Frustrating doesn’t begin to cover it.
You’re standing there looking at outlets, feeling like you need an electrical engineering degree. Here’s the relief: Finding your perfect outlet is simpler than it seems. You just need to know what you’re looking at.
What You’ll Walk Away Knowing
Think of this as learning two sides of the same coin. There’s the “outlet side” – what’s actually in your wall. Then there’s the “connector side” – what plugs into your car.
Which setup matches your daily driving without breaking the bank? That’s what we’re figuring out together. How to spot what you already have and decide if it’s enough.
| Outlet Type | Voltage | Charging Speed | Typical Installation Cost |
|---|---|---|---|
| NEMA 5-15 (Standard) | 120V | 3-5 miles/hour | $0 (existing) |
| NEMA 14-30 (Dryer) | 240V | 20-25 miles/hour | $300-800 |
| NEMA 14-50 (RV) | 240V | 30+ miles/hour | $500-1,200 |
| NEMA 6-50 (Welder) | 240V | 40+ miles/hour | $700-1,500 |
Understanding Your Charging Speed Options
Level 1 vs Level 2—It’s Like a Drip vs a Tap
Level 1 uses that regular outlet you already have everywhere. Picture a slow drip filling a swimming pool. It works, but you’ll be waiting a while.
Level 2 needs a beefier 240V outlet like your dryer uses. Think garden hose versus fire hose. Your car’s onboard charger converts wall power to battery power. Bigger outlet lets it work faster.
Why EVs Need More Juice Than Your Toaster
Your toaster pulls about 1,500 watts for two minutes. Your EV wants 7,000+ watts for hours. That’s like running five toasters simultaneously all night long.
Standard outlets deliver trickle power that takes 35+ hours for a full charge. Safety features matter more when you’re pulling continuous power for hours. This isn’t just about speed – it’s about doing it safely.
| Power Level | Voltage | Typical Power Draw | Range Added Per Hour |
|---|---|---|---|
| Level 1 | 120V | 1-2.3 kW | 3-5 miles |
| Level 2 | 240V | 7-19 kW | 10-80 miles |
| DC Fast | 400V+ | 50-350 kW | 180+ miles |
Meet Your Outlet Options: From Basic to Brilliant
The Standard NEMA 5-15—Your Starter Outlet
That familiar three-prong outlet adding 3-5 miles of range per hour. Perfect if you drive under 40 miles daily and park overnight. The math is simple: eight hours of charging gives you about 30 miles.
Costs nothing extra but time is the trade-off. I know someone who drives 25 miles daily and swears by Level 1 charging. It works if your routine fits the pace.
The Power Players—240V Outlets That Transform Your Charging
NEMA 14-50: The gold standard, adding 30+ miles per hour. Same outlet your RV neighbor uses, delivering 50 amps of charging power. This is what most electricians recommend for dedicated EV charging.
NEMA 14-30: Your dryer outlet moonlights as an EV charger, delivering 20-25 miles per hour. Already installed in most homes, making it a popular starting point.
NEMA 6-50: The welder’s outlet delivering 40 amps of pure charging power. Less common but incredibly fast when you find one.
NEMA 6-20: The overlooked middle ground that doubles standard outlet speed. Great compromise between cost and performance.
| Outlet Type | Amps | Voltage | Power Output | Miles/Hour | Common Use |
|---|---|---|---|---|---|
| NEMA 5-15 | 15 | 120V | 1.8 kW | 3-5 | Standard outlets |
| NEMA 6-20 | 20 | 240V | 3.8 kW | 8-12 | Air conditioners |
| NEMA 14-30 | 30 | 240V | 7.2 kW | 20-25 | Electric dryers |
| NEMA 6-50 | 50 | 240V | 12 kW | 35-40 | Welders |
| NEMA 14-50 | 50 | 240V | 12 kW | 30+ | RVs, EVs |
Connectors: What Actually Plugs Into Your Car
J1772—The Universal Language of Home Charging
Almost every non-Tesla in North America speaks this connector language. Works for both Level 1 and Level 2 charging at home. Think of it as the USB-C of the EV world – one standard, many uses.
The five-pin design handles power transfer and communication between your car and the charging station. Tesla vehicles use an adapter to connect to J1772 stations, but that adapter comes with every Tesla.
The Fast-Charging Road Trip Connectors
CCS and CHAdeMO handle those quick highway pit stops. These are for DC fast charging when you’re traveling long distances. NACS (Tesla’s plug) becoming the new standard by 2025.
Adapters bridge the gap between different connector types. No need to panic about compatibility – the industry is standardizing around solutions that work for everyone.
Your Personal Charging Blueprint
Start With These Three Questions
“How far do I drive daily?” Under 30 miles? Standard outlet might surprise you with its ability to keep up. 30-60 miles? That dryer outlet becomes your best friend. 60+ miles? NEMA 14-50 brings real breathing room.
“What’s already in my garage?” Hunt for those larger, unusual-shaped outlets. Check near your electrical panel or laundry area. You might already have what you need.
“Am I staying put or might I move?” Renters love portable NEMA 14-50 setups that don’t require permanent installation. Homeowners might prefer cleaner hardwired installation that adds property value.
Real Costs and Smart Shortcuts
What You’ll Actually Pay in 2025
Basic outlet installation runs $250-$800 depending on distance from your electrical panel. Full Level 2 setup with charger averages $800-$2,500 total. Every foot from your electrical panel adds $10-20 in wiring costs.
Panel upgrades can add $1,500-$3,000 if your home’s electrical system needs more capacity. Most homes built after 1990 have adequate electrical panels for EV charging.
| Installation Type | Cost Range | Timeline | Permits Required |
|---|---|---|---|
| Basic NEMA 5-15 | $0 | Immediate | No |
| NEMA 14-30 (existing) | $200-500 | 1-2 hours | Usually no |
| New NEMA 14-50 | $700-1,500 | 3-6 hours | Yes |
| Panel upgrade + outlet | $2,000-4,000 | 1-2 days | Yes |
Money-Saving Moves Most People Miss
Smart splitters share your dryer outlet for $349 versus $2,000 for a new circuit. Companies like NeoCharge make devices that automatically switch between your dryer and EV charger.
Federal tax credit covers 30% up to $1,000 for installation costs. Many utilities offer additional rebates ranging from $250-$500. Time-of-use electricity rates save $300+ yearly when you charge overnight during off-peak hours.
Safety First: The Rules That Keep You Protected
The 80% Rule Nobody Mentions
Your EV pulls continuous power, so you can only safely use 80% of circuit capacity. 50-amp outlet? You’re actually getting 40 amps of charging power maximum.
This prevents overheating and keeps your home’s electrical system safe. It’s not a limitation – it’s smart engineering that protects your investment.
Outdoor Installation Wisdom
Don’t confuse outlet “NEMA” ratings with weatherproof enclosure ratings. Type 3R handles rain, Type 4X survives coastal salt air and extreme weather. GFCI protection required for all plug-in EV charging installations.
Licensed electricians understand these requirements. DIY installation might save money upfront but could create safety hazards and void your home insurance.
Making It Happen: Your Action Plan
This Week’s To-Do List
Check your garage for existing 240V outlets – look for the big, unusual-shaped ones. Snap photos of your electrical panel to show electricians during quotes. Get three quotes because prices vary wildly between installers.
Call your utility company about rebates before scheduling installation. Many offer incentives that can cover 25-50% of installation costs.
Questions That Save You Money
“Can we use existing wiring runs?” might save hundreds in trenching or wall opening costs. “What’s my panel’s available capacity?” determines if you need expensive upgrades. “Would a smart splitter work instead?” could eliminate new circuit installation entirely.
Ask about permit fees upfront. Some areas charge $50, others charge $500. Factor this into your budget planning.
Conclusion: You’re Ready to Charge Forward
You started unsure about outlets and connectors – now you know exactly what to look for. Whether you stick with Level 1 or upgrade to Level 2, you’ve got a plan that matches your driving habits.
Remember: there’s no perfect choice, just the right choice for your life right now. Your needs might evolve as you get comfortable with EV ownership.
Take that walk to your garage and investigate what you’ve got. If you need an upgrade, you know what to ask for. Welcome to the EV family – charging anxiety fades fast once you’re plugged in and experiencing the convenience of home charging.
EV Charging Outlet Types (FAQs)
What outlet do I need for Level 2 charging?
You need a 240V outlet for Level 2 charging. The most common options are NEMA 14-50 (50 amp), NEMA 14-30 (30 amp), or NEMA 6-50 (50 amp). NEMA 14-50 is considered the gold standard because it provides the fastest charging speeds and works with virtually all Level 2 chargers on the market.
Can I use my dryer outlet for EV charging?
Yes, you can use your dryer outlet (typically NEMA 14-30) for EV charging with the right equipment. Smart splitters like NeoCharge automatically switch between your dryer and EV, so both can share the same outlet safely. This solution costs around $349 versus $1,500+ for installing a dedicated circuit.
Do I need to upgrade my electrical panel for EV charging?
Most homes built after 1990 have adequate electrical panels for Level 2 EV charging. You’ll need at least 200-amp service with available breaker slots. Homes with 100-amp panels or panels at full capacity typically require upgrades costing $1,500-$3,000. A licensed electrician can assess your specific situation during a consultation.
What’s the difference between NEMA 14-50 and 6-50?
NEMA 14-50 has four prongs (two hots, one neutral, one ground) and is more common for RV and EV applications. NEMA 6-50 has three prongs (two hots, one ground, no neutral) and is typically used for welders. Both deliver 50 amps at 240V, but 14-50 is more versatile and compatible with more EV chargers.
How many amps do I need for EV charging?
For daily driving under 40 miles, a 30-amp circuit (NEMA 14-30) providing 24 amps of actual charging power is sufficient. For faster charging or longer daily drives, a 50-amp circuit (NEMA 14-50) providing 40 amps of charging power is recommended. Remember the 80% rule – you can only use 80% of the circuit’s rated capacity for continuous loads like EV charging.
