You pull into a charging station on your first road trip, plug in hand, only to discover it won’t fit your car. Or maybe you’re shopping for an EV online, drowning in a sea of acronyms like CCS, CHAdeMO, and NACS. You want the freedom electric driving promises, but the charging maze feels like a wall between you and the open road.

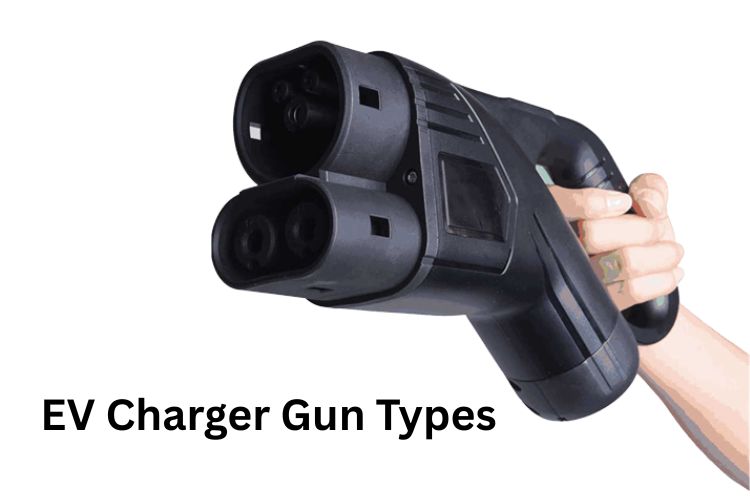

Keynote: EV Charger Gun Types
EV charger gun types include J1772 for North American AC, Type 2 for European AC, CCS1/CCS2 for global DC fast charging, CHAdeMO as a fading legacy standard, and NACS rapidly becoming North America’s unified standard. Understanding your vehicle’s connector ensures seamless charging anywhere.
What Exactly Is a Charger Gun? (And Why “Gun”?)
Here’s the Relief: It’s Simpler Than It Looks
Think of charger guns like phone chargers before USB-C arrived. Messy at first, sure, but patterns emerge fast. Once you know the four plugs you’ll actually encounter, the confusion melts away. This guide hands you the clarity to charge anywhere with zero second-guessing.
The Handshake Between Station and Car
It’s the handheld piece you grab when you charge. Cable, connector, handle, and safety locks bundled into one tool. The “plug” is just the tip that clicks into your car’s inlet. The “gun” is the entire unit in your hand, managing the conversation between station and vehicle to deliver power safely.
Quick Vocab Check
Gun means the entire handheld unit you grip. Connector or plug refers to the business end that enters your car. Inlet or port is the socket on your vehicle’s body. These terms get tossed around, but knowing the difference helps you shop smarter and troubleshoot faster.
The Two Big Families: AC Home Charging vs. DC Fast Charging
AC Guns: Slow, Steady, and Budget-Friendly
AC charging plugs into your home or workplace overnight. Think 7 to 22 kW, adding 30 to 90 miles in eight hours. It uses your car’s built-in converter, so it’s gentler on the battery and kinder to your wallet. Type 1, or J1772, is the five-pin round plug that North America calls home. You press a latch to lock it in manually. Type 2, known as Mennekes, features seven pins with a flat top. Europe and India favor it because it handles three-phase power and auto-locks for security.
DC Guns: The Speed You Feel in Your Bones
DC fast charging bypasses your car’s converter. It delivers 50 to 350 kW straight to the battery, giving you 80 percent charge in 20 to 30 minutes. You find these at highway rest stops and city hubs. They cost more per kWh but save hours. CCS, or Combined Charging System, merges AC pins with two chunky DC pins below.
CCS1 serves North America, CCS2 serves Europe and India. CHAdeMO is the older Japanese round plug, fading fast but still on legacy Nissan Leafs. NACS, also called SAE J3400, is Tesla’s sleek, lightweight design. It handles all speeds, and Ford, GM, and Rivian are adopting it by 2025.
Regional Snapshot
| Region | AC Standard | DC Fast Standard | What’s Coming |
|---|---|---|---|
| North America | Type 1 (J1772) | CCS1, NACS | NACS taking over |
| Europe | Type 2 (Mennekes) | CCS2 | CCS2 staying strong |
| India | Type 2 | CCS2 (PM E-DRIVE) | Bharat legacy fading |
| China | GB/T AC | GB/T DC | ChaoJi on horizon |
This table shows how regions split. In North America, NACS is the future. Europe sticks with CCS2. India follows Europe’s lead, while China charts its own path.
India-Specific: The Plugs You’ll Actually See in 2025
Public DC: CCS-II Is the Law of the Land
PM E-DRIVE operational guidelines mandate CCS-II at all new fast-charge sites across India. Legacy Bharat AC-001 and DC-001 connectors still linger at older two-wheeler and light-EV stations, especially in rural zones. If you’re driving a newer passenger EV, CCS-II is your go-to standard.
Home Charging: Type 2 Wallboxes Rule
Most Indian wallboxes ship with Type 2 guns. Measure your driveway reach before buying, because cable length matters. Three-phase homes can push 22 kW, while single-phase caps at 7.2 kW. That difference can shave hours off your overnight charge.
The Ground Reality
| Connector Type | Where You Find It | Power Range | Compatibility Notes |
|---|---|---|---|
| Type 2 (Home AC) | Residential wallboxes | 7.2 to 22 kW | Standard for new Indian EVs |
| CCS-II (Public DC) | Highway corridors, city hubs | 50 to 150 kW | Mandated by PM E-DRIVE |
| Bharat AC-001 | Legacy two-wheeler stations | Up to 3 kW | Fading but still present |
| Bharat DC-001 | Older fleet depots | 15 to 25 kW | Being phased out |
Plan your route around CCS-II, but keep a Bharat adapter handy if you’re driving fleet vehicles or older Tata EVs in rural zones. Preparedness beats frustration every time.
Decoding Speed: Why Your 250 kW Charger Sometimes Crawls
The Math That Actually Matters
Here’s the formula. Battery size in kWh divided by charger power in kW equals hours to full. A 60 kWh battery divided by a 7.2 kW home gun takes roughly eight hours. Your car’s onboard limit caps AC speed, so check your manual for the ceiling. A 7.2 kW charger can’t deliver 22 kW, even if your wallbox supports it, if your car maxes out lower.
The Slowdown Culprits You Can’t See
Battery thermal management throttles speed in scorching heat or freezing cold. Charging tapers after 80 percent to protect cell health. Those last 20 percent take almost as long as the first 80 percent. Shared circuits at busy stations split power. You’re getting 50 kW instead of the advertised 150 kW because three other cars are plugged in. Understanding these hidden factors keeps your expectations realistic and your stress low.
The Feel in Your Hand: Why Ergonomics and Safety Matter
Weight, Reach, and Grip
NACS guns weigh roughly 30 percent less than CCS. That means less wrist strain when cables stretch 15 feet or more. Cooled DC cables get heavy fast. Check mount height and park on the correct side at stations to avoid awkward reaches. Ask yourself: Does the handle stay cool? Does the trigger click crisply? Can I align it in a tight parking bay? These questions matter more than you think.
Locking In and Weatherproofing
Always click to lock. Partial insertions cause heat spikes and session failures. IP54-plus ratings mean rain is fine. Just wipe dust and avoid puddle splashes. High-power DC guns need thermal sensors and liquid cooling to keep contacts safe at 350-plus kW. The connector isn’t just a plug. It’s a sophisticated piece of safety equipment designed to handle immense energy without catching fire.
Adapters: Your Survival Toolkit (and When to Skip Them)
The Ones You Might Actually Need
| Adapter Type | What It Does | Price Range | Key Notes |
|---|---|---|---|
| J1772 ↔ NACS | Non-Tesla cars use Superchargers (and vice versa) | $150 to $300 | Verify UL or CE marks |
| Type 1 ↔ Type 2 | North American cars charge in Europe | $200 to $400 | Handy for road trips abroad |
| CCS ↔ CHAdeMO | Does not exist | N/A | You cannot convert between DC standards |
Never stack adapters. Extra leverage stresses your car’s inlet and risks cracking the port. Some stations now offer built-in omniplug adapters. Just grab and go. Fleets should standardize on one gun type across depots to cut training time and downtime.
The Golden Rules
Buy only UL-listed or CE-certified adapters. Cheap knockoffs lack thermal sensors and can melt your port or start a fire. Check your automaker’s approved list before purchasing. Using non-approved adapters voids your warranty and can get you banned from charging networks. The few dollars you save aren’t worth the risk.
Future-Proofing: What’s Rolling In by 2026
NACS/J3400: The Unstoppable Momentum
Ford, GM, Rivian, Honda, Hyundai, and Polestar are all switching to NACS starting 2025 to 2026. Tesla is opening over 12,000 Supercharger stalls to non-Tesla EVs across North America. By the end of 2025, nearly every new EV sold in the region will have a native NACS port. CCS1 becomes a legacy standard, supported by adapters for existing vehicles.
ChaoJi and Megawatt Charging
ChaoJi aims for 1.5 kilovolts and 600-plus amps with backward adapters. China and Japan are co-developing it to replace older standards. The Megawatt Charging System, or MCS, targets heavy-duty trucks. It delivers 1,000 kW to fill semis in 30 minutes, enabling the electrification of commercial transport. Passenger cars won’t use MCS, but its arrival signals how seriously the industry takes decarbonization.
Bidirectional Charging: Your Car Becomes a Battery
Within three years, your EV won’t just take power. It’ll give it back during blackouts or peak-rate hours, turning your driveway into a mini power plant. CHAdeMO already has mature Vehicle-to-Grid technology, but CCS and NACS are racing to catch up. This could reshape home energy management and grid stability.
Shopping Smart: Picking the Right Gun for Your Life
Match Your Car First—Non-Negotiable
Pop your charging door. Look for the label. Cross-check your owner’s manual. Most modern non-Tesla EVs in the USA have CCS1. European and Indian models have CCS2. Tesla models have NACS, but adapters unlock CCS stations. Buying a charger that doesn’t fit your port is money wasted.
Match Your Daily Rhythm Second
| Daily Driving Pattern | Recommended Setup | Approximate Cost |
|---|---|---|
| Short commutes (under 40 miles/day) | 7.2 kW home wallbox | $900 to $2,200 installed |
| Long commutes or frequent road trips | Prioritize CCS or NACS public access | Map corridors first |
| Multi-car household | Dual-gun home station or load-sharing unit | $1,500 to $3,500 installed |
Professional installation runs $500 to $2,000 if your panel needs upgrades or a 50-foot conduit run. Portable adapters cost $150 to $500 each. That’s cheaper than a tow truck when you’re stranded. Check local utility rebates. Many offer $250 to $750 back on Level 2 home chargers.
Budget the Hidden Costs
Don’t just buy the charger. Factor in electrician fees, permit costs, and potential panel upgrades. A 50-amp circuit might need a new breaker. Conduit runs through finished walls add labor hours. Ask for a site assessment before committing. Knowledge today prevents sticker shock tomorrow.
Common Headaches (and the Fast Fixes)
“My Gun Won’t Release!”
Unlock your car doors. Some EVs electronically lock the gun when the vehicle locks. Press the emergency release button on the charger itself, usually near the cable mount. Last resort: disconnect your 12-volt battery for five minutes, then retry. This resets the vehicle’s charging control module.
“The Charger Shows an Error Code”
| Error Type | Quick Fix | When to Call Support |
|---|---|---|
| Communication error | Unplug, wait 30 seconds, reconnect firmly | After three failed attempts |
| Ground fault | Inspect for water or dirt, wipe clean | If error persists after cleaning |
| Overheating | Let cable cool in shade, avoid direct sun above 95°F | If it happens repeatedly |
Most errors clear with a simple reset. If the problem persists, the issue might be the station, not your car.
“Why Is This Taking Forever?”
Cold weather slows battery acceptance. Precondition your cabin while plugged in to warm the pack. You hit the 80 percent taper. Those last 20 percent take almost as long as the first 80 percent by design. Shared power at busy stations splits output. Try a different stall or come back off-peak. Understanding the cause turns frustration into patience.
Your Charging Confidence Checklist
Before You Drive Away
Confirm your car’s port type and max AC/DC acceptance rate. Check the manual or door sticker. Measure driveway distance to your electrical panel. Budget for conduit runs over 25 feet. Download PlugShare or ChargePoint to scout public networks along your regular routes. Test one public fast-charge session before your first long trip. Familiarity kills range anxiety.
The One Thing to Remember
You’re not just buying a cable. You’re choosing how smoothly your electric life runs. Start with home charging if possible. It’s one-third the cost of public DC and always available. Keep a portable adapter in your trunk for the unexpected detour. It’s your insurance policy against the unknown.
Conclusion: You’ve Got This
You now speak the language. Type 2, CCS, NACS, and the quirks that slow them down. The charging maze isn’t a maze anymore. It’s a map, and you’re holding it. Pull up to any station with the spark of confidence. You know what fits, what’s fast, and what to avoid.
One Last Thought
The best charger gun is the one that matches where you park every night. Get that right, and the rest is just adventure. Now go charge forward, literally.
EV Charging Gun Types (FAQs)
What are the different EV charger connector types?
The main types are J1772 (Type 1) for North American AC charging, Type 2 (Mennekes) for European AC charging, CCS1 and CCS2 for combined AC/DC fast charging, CHAdeMO for legacy DC charging, and NACS (SAE J3400) for Tesla and upcoming North American EVs. Each serves specific regions and power needs. Your car’s manual or charge port label tells you which one you need.
Which charging standard does Tesla use?
Tesla uses NACS, or North American Charging Standard, now standardized as SAE J3400. In Europe, Tesla switched to CCS2 in 2019 and offers adapters for older vehicles. NACS handles both AC and DC charging through a single compact plug. By 2025, most major automakers in North America will adopt NACS, making it the dominant standard.
Can I use a Type 1 charger with a Type 2 car?
Yes, but you need a Type 1 to Type 2 adapter. These adapters are passive devices that simply rewire the pins. They work for AC charging only, not DC fast charging. Make sure the adapter is certified by UL or CE. Check your car’s onboard charger limit, because the adapter won’t increase charging speed beyond what your vehicle supports.
What is the difference between CCS1 and CCS2?
CCS1 is based on the J1772 AC connector with two DC pins added below. It’s the standard in North America. CCS2 is based on the Type 2 Mennekes connector with the same two DC pins. It’s the standard in Europe and India. Both deliver similar DC fast charging speeds up to 350 kW. The key difference is the AC portion and regional compatibility.
How fast can different connector types charge?
J1772 and Type 2 deliver AC charging up to 19.2 kW and 22 kW respectively. CCS1 and CCS2 handle DC fast charging from 50 kW to 350 kW or more. CHAdeMO typically maxes out at 50 to 100 kW in practice, though newer specs support 400 kW. NACS delivers up to 250 kW on V3 Superchargers and 325 kW on V4. Actual speed depends on your car’s acceptance rate and battery temperature.
