You just drove your shiny new electric vehicle home, pull into the garage with excitement bubbling in your chest, grab the charging cable… and it doesn’t fit. That sinking feeling? I’ve been there. The good news is, once you understand the simple logic behind EV cables, that confusion melts away into confidence. Think of this guide as your friendly neighbor who’s already figured out all the plugs, adapters, and charging speeds—and now I’m here to save you the hassle.

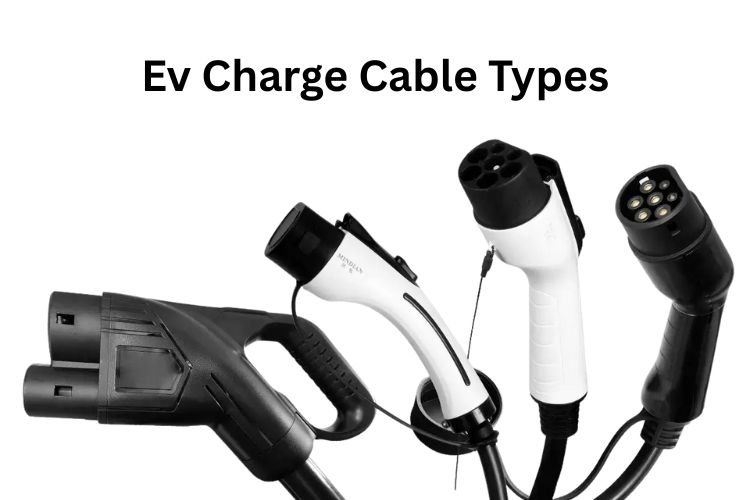

Keynote: EV Charging Cable Types
EV charging cables split into four modes: Mode 1-2 for emergency use, Mode 3 for daily 7-22kW AC charging (user-owned), and Mode 4 for 50-350kW DC fast charging (station-attached). Choose cables matching your vehicle’s connector type: J1772/CCS1 (North America), Type 2/CCS2 (Europe), or emerging NACS standard. Proper cable selection ensures safe, efficient charging.
Why EV Cable Types Matter More Than You Think
The Hidden Cost of the Wrong Cable
Using mismatched cables can double or triple your charging time. Your 7-hour overnight charge suddenly becomes a 20-hour marathon that leaves you stranded. Wrong amp ratings lead to overheating and potential damage to your car’s expensive onboard charger. Incompatible plugs mean hunting for adapters at midnight when you desperately need power.
Future-proofing now saves you from buying new cables next year. I learned this lesson when my first EV cable became obsolete within 18 months.
Your Charging Reality Check
The right cable transforms range anxiety into charging zen. You’ll sleep soundly knowing your car will be ready every morning. Why knowing your cables means never getting stranded becomes clear when you can confidently pull into any charging station.
The convenience factor changes your daily routine completely. No more planning your life around charging compatibility or carrying multiple adapters in your trunk.
Breaking Down the Basics: AC vs DC, Modes, and What Actually Matters
Your Two Main Charging “Speeds” Explained
AC Charging delivers the gentle overnight sip your battery loves. Think Level 1 and Level 2 charging that happens at home or work. Your car’s onboard charger converts this alternating current into the direct current your battery needs. This built-in converter sets the real speed limit, no matter how powerful the external charging station claims to be.
DC Fast Charging provides the coffee-break power gulp that saves road trips. These Level 3 stations do the heavy electrical work outside your car. They convert AC from the grid into high-voltage DC before it ever reaches your vehicle, bypassing that slower onboard charger completely.
The Four Modes Decoded (Without the Jargon)
Mode 1 charging connects directly to a household outlet with no safety controls. Forget it exists for cars – it’s outdated and potentially dangerous for anything larger than an e-bike.
Mode 2 gives you the emergency “granny cable” backup that plugs into regular outlets. It includes a small control box for basic safety but charges painfully slowly at just 1-2 kW.
Mode 3 serves as the everyday hero for 90% of your charging needs. These dedicated charging stations deliver 7-22 kW safely through smart communication between car and charger.
Mode 4 comes built into those super-fast highway chargers that pump 50-350 kW directly into your battery. You’ll never own this cable – it’s permanently attached to the charging station.
| Charging Mode | Power Output | Cable Ownership | Primary Use |
|---|---|---|---|
| Mode 1 | 1-2 kW | User owns | Emergency only (not recommended) |
| Mode 2 | 1-3 kW | User owns | Emergency backup |
| Mode 3 | 7-22 kW | User owns | Daily home/public charging |
| Mode 4 | 50-350+ kW | Station attached | Highway fast charging |
What’s Actually Inside Your Cable
Copper highways carry serious power flow through thick conductors rated for 16, 32, or even 63 amps. Smart chips prevent meltdown disasters by constantly monitoring temperature and current flow. Weather armor provides year-round reliability with IP54 or IP67 protection against rain, snow, and dust.
“A quality cable is like a good insurance policy – you never think about it until you need it,” explains Sarah Chen, a charging infrastructure engineer with 15 years of experience.
The Plug Types You’ll Actually Encounter (And How to Remember Them)
AC Plugs for Your Daily Charging
Type 1 (J1772): The North American Classic
Five pins in a D-shape create an instantly recognizable profile. This standard dominates older EVs and many current models across North America and Japan. Single-phase power limits it to 19.2 kW maximum, but that’s plenty for overnight charging at home.
The simple mechanical latch on top secures the connection during charging sessions. While not as sophisticated as automatic locking systems, it gets the job done reliably.
Type 2 (Mennekes): The European Favorite
Seven pins support both single and three-phase power delivery up to 22 kW. This higher capacity makes it the global standard for good reasons. European electrical grids commonly provide three-phase service, enabling faster home charging than North American systems allow.
The automatic locking mechanism adds security and prevents unauthorized disconnection. Software controls engage the lock during charging and release it when the session completes.
DC Fast-Charging Connectors
CCS: The Combo King
CCS literally combines your AC plug with DC pins positioned directly below. This “combo” design eliminates the need for separate charging ports on your vehicle. CCS1 serves North America with J1772 compatibility, while CCS2 dominates Europe with Type 2 integration.
Both versions handle everything from 7 kW home charging to 350 kW highway stops. The unified approach simplifies manufacturing and reduces costs for automakers.
| Region | CCS Version | AC Base | Max DC Power | Phase Support |
|---|---|---|---|---|
| North America | CCS1 | J1772 | 350 kW | Single-phase |
| Europe/Global | CCS2 | Type 2 | 350 kW | Single & Three-phase |
CHAdeMO: The Fading Pioneer
The round plug from Japan’s early fast-charging days still appears on some Nissan Leafs and Mitsubishi Outlanders. This separate connector requires your vehicle to have two distinct charging ports – one for CHAdeMO fast charging and another for AC charging.
Network availability shrinks quarterly in US data as automakers abandon this standard. Even Nissan switched to CCS for their newer Ariya model.
Tesla NACS/J3400: From Exclusive to Everyone
Tesla’s sleek single plug handles all charging speeds from 1 kW to over 300 kW. The compact design shares just five pins for both AC and DC power delivery. Most automakers announced they’re switching to this standard by 2025.
The opening of Tesla Superchargers to all EVs creates the largest fast-charging network in North America. This “network effect” drove the rapid industry adoption more than the connector’s technical merits alone.
Choosing Your Home Setup: The Daily Driver Decision
Tethered vs Untethered: The Real Trade-offs
Tethered cables stay permanently attached to your wall charger, providing grab-and-go convenience. You’ll never forget your cable or leave it at a public station. The downside? You can’t take it with you for emergency charging elsewhere.
Untethered systems offer portable flexibility and future-proof swapping capability. Mixed-EV households benefit from one charging point that serves different vehicle types with appropriate cables. Storage and remembering to bring the cable become your responsibility.
Length, Power, and Practical Choices
5-7 meters hits the sweet spot between reach and manageable storage. Shorter cables limit parking options, while longer ones become unwieldy and expensive. 32A cables justify the extra investment by supporting up to 22 kW three-phase charging – even if your current car only accepts 16A.
Single vs three-phase matching depends on your home’s electrical capacity. Most North American homes provide split-phase 240V service that limits you to single-phase charging. European homes commonly offer three-phase connections that enable faster charging speeds.
What You’ll Actually Spend
Basic 16A cables range from $150-300 depending on length and quality. Premium 32A cables typically cost $300-600 but future-proof your investment. Smart cables with mobile apps command $400-800 for advanced features like scheduling and energy monitoring.
Professional installation reality adds $500-1500 for electrical work, permits, and safety compliance. DIY installation voids warranties and creates liability issues I don’t recommend.
| Cable Type | Power Rating | Typical Cost | Installation Cost |
|---|---|---|---|
| Basic 16A | 3.7-7.4 kW | $150-300 | $500-800 |
| Premium 32A | 7.4-22 kW | $300-600 | $600-1200 |
| Smart Cable | 7.4-22 kW | $400-800 | $700-1500 |
Navigating Public Charging Without the Stress
Why Most Stations Have Their Own Cables
Fast chargers always include permanently attached (tethered) cables because of the high currents and safety requirements. These thick, liquid-cooled cables would be impossibly heavy and expensive for individual ownership. Level 2 stations split about 50/50 between tethered and untethered configurations.
Regional differences catch travelers off-guard frequently. European stations commonly provide untethered AC charging, while North American stations lean toward tethered solutions. Always check station photos in charging apps before arriving.
Your Emergency Trunk Kit
A universal Type 2 cable opens access to untethered stations across most of the world. Key adapters worth carrying include J1772-to-NACS for Tesla drivers and potentially CHAdeMO adapters for older vehicles. Proper storage prevents $400 cable damage from road salt, moisture, and physical abuse.
Essential Emergency Kit:
- Universal charging cable for your region
- Basic adapters for common incompatibilities
- Microfiber cloth for cleaning dirty connectors
- Cable organizer bag with moisture protection
Network Quirks and Compatibility
Payment problems plague public charging more than technical issues. Download multiple network apps and keep backup payment methods ready. Broken equipment workarounds include trying different charging handles at multi-port stations and checking cable connections for corrosion.
Apps like PlugShare and ChargePoint save your charging session with real-time availability and user reviews. These crowdsourced reports reveal which stations actually work versus appearing functional in official apps.
When Things Go Wrong: Real-World Fixes
Cable Stuck? Don’t Panic
The push-hard-then-release technique works for most mechanical latches that won’t disengage. Press the cable firmly into the port, then pull the release mechanism again. Temperature changes can cause metal parts to contract and stick.
Finding your car’s emergency release saves expensive service calls. Most vehicles include a manual cable release mechanism accessible from inside the car or through a hidden panel. Consult your owner’s manual for the exact location and procedure.
When to stop trying and call for help becomes critical when you feel excessive resistance. Forcing a stuck cable can damage both the vehicle port and the expensive charging station.
Charging Keeps Stopping?
Green corrosion on pins creates poor electrical contact that triggers safety shutdowns. The contact cleaner solution involves gently wiping pins with isopropyl alcohol and a lint-free cloth. Never use abrasive materials that scratch the metal surface.
App conflicts and master resets resolve many software-related charging failures. Close all charging apps, restart your phone, and try initiating the session again. Some vehicles require a complete power cycle to reset their charging systems.
Testing with another cable first isolates whether the problem lies with your equipment or the charging station. Public stations often have multiple cables or nearby alternatives for troubleshooting.
Warning: Never attempt electrical repairs yourself. High-voltage EV charging systems can cause serious injury or death. When in doubt, contact qualified technicians.
Smart Accessories and Safety That Actually Matter
Essential Add-ons Worth the Money
Cable organizers prevent costly kinks that reduce current-carrying capacity and create fire hazards. Wall-mounted holders keep cables off wet ground where they accumulate dirt and moisture. Quality organizers cost $50-150 but protect your $400+ cable investment.
Surge protectors designed for EV charging safeguard your battery’s health from electrical spikes. Standard household surge protectors can’t handle the sustained high currents of EV charging. Dedicated units cost $200-400 but prevent thousands in battery damage.
Maintenance That Saves Hundreds
Monthly 2-minute inspection routines catch problems before they become expensive failures. Check for frayed insulation, bent pins, and loose connections. Look for unusual wear patterns that indicate alignment issues with your charging port.
Proper coiling technique extends cable life significantly. Large, gentle loops prevent copper wire fatigue that leads to internal breaks. Never coil tightly or allow the cable to kink sharply during storage.
Cleaning contacts safely requires only isopropyl alcohol and soft cloths. Monthly cleaning removes oxidation and debris that create resistance and heat. Avoid petroleum-based cleaners that damage rubber seals.
“Regular maintenance is like changing your car’s oil – skip it and you’ll pay much more later,” notes Mike Torres, a certified EV technician with Tesla and Ford experience.
Theft Prevention and Insurance
Cables get stolen because copper values have risen dramatically, and EV cables contain significant amounts of high-grade copper conductors. A 32A charging cable can contain $50-100 worth of copper alone. Thieves target public parking areas and unattended home installations.
Locking mechanisms that work include cable locks, charging port locks, and security enclosures for wall-mounted chargers. Simple cable locks cost $30-50 and deter opportunistic theft. Professional installation behind locked gates provides the best protection.
Home insurance coverage often excludes EV charging equipment or limits coverage to a few hundred dollars. Check your policy specifically and consider separate coverage for expensive installations. Some insurers offer EV-specific riders that cover cables, chargers, and installation.
Future-Proofing Your Investment
Technologies Coming Fast
Wireless charging pads eliminate cables entirely by using electromagnetic fields to transfer power. Early systems deliver 3-11 kW through parking-pad installations. Major automakers plan wireless-capable vehicles by 2027-2030.
Ultra-fast cooling enables 5-minute charging sessions that rival gas station fill-ups. Liquid-cooled cables and battery thermal management allow 500+ kW power delivery without overheating. Prototype systems already demonstrate 10-80% charging in under 10 minutes.
Vehicle-to-grid technology reverses power flow, turning your EV into a home battery backup. During blackouts, your car can power your house for days. Peak electricity pricing lets you sell power back to utilities for profit.
Battery swapping emerges as an alternative to fast charging for commercial fleets. Automated systems replace depleted battery packs with fresh ones in under 5 minutes. Several companies are deploying swap stations in California and Europe.
The NACS Revolution
Universal adoption timeline shows most automakers switching to NACS by 2025-2026 model years. Ford leads the transition with 2025 vehicles, followed by GM, Rivian, and others. Adapter availability from manufacturers bridges the gap for existing CCS vehicles.
Compatibility worries fade as SAE standardizes NACS as J3400 with the same communication protocols as CCS. Simple pass-through adapters enable seamless operation between standards. Tesla’s opening of 12,000+ Supercharger locations creates the largest fast-charging network globally.
| Automaker | NACS Adoption Timeline | Adapter Availability |
|---|---|---|
| Tesla | Current (all vehicles) | N/A |
| Ford | 2025 model year | Available now |
| GM | 2025 model year | Available now |
| Rivian | 2025 model year | Available Q2 2024 |
| Others | 2025-2026 model years | Varies by manufacturer |
Preparing for What’s Next
Bi-directional charging readiness requires specific hardware in both your vehicle and home charging equipment. New installations should specify bi-directional capability even if not immediately used. Retrofitting older equipment costs significantly more than including it initially.
Higher amp ratings accommodate future EVs with larger batteries and faster AC charging capabilities. Installing 60A or 80A service now costs little extra but supports next-generation vehicles that may charge at 30+ kW on AC.
Smart features worth waiting for include load balancing for multiple vehicles, automatic utility peak-time shifting, and integration with home solar systems. These capabilities justify premium charging equipment costs through long-term energy savings.
Your Personal Decision Framework
Three Cables Every EV Owner Needs
- Primary home charging solution matched precisely to your car’s inlet type and onboard charger capacity. This handles 90% of your charging needs with optimal speed and convenience.
- Portable Mode 2 cable for emergency backup when nothing else works. These “granny cables” charge slowly but connect to any household outlet in desperate situations.
- Public charging cable or adapter kit that opens access to the most stations possible. Universal Type 2 cables work globally, while regional adapters handle local incompatibilities.
The Smart Buyer’s Final Checklist
Verify your car’s inlet type and onboard charger capacity before buying any cable. A 16A cable wastes money if your car accepts 32A, while a 32A cable overspends if your car maxes out at 16A. Check your owner’s manual or VIN decoder for exact specifications.
Calculate daily miles and charging needs to size your home setup appropriately. Driving 40 miles daily requires about 12 kWh charging overnight. A 7 kW charger provides plenty of margin, while 150+ mile daily drivers need 22 kW three-phase power.
Check home electrical capacity with a qualified electrician before committing to high-power charging equipment. Older homes may need panel upgrades costing thousands of dollars. Factor these costs into your total charging budget.
Compare certified dealers versus marketplace risks carefully. Uncertified cables from online marketplaces create fire hazards and void vehicle warranties. Stick with UL-listed equipment from established manufacturers or authorized dealers.
Understand warranty and return policies completely before purchasing. Quality cables should include 2-3 year warranties covering manufacturing defects. Avoid sellers who don’t clearly state warranty terms or return procedures.
Conclusion: You’ve Got This Now
See? EV charging cables aren’t the mysterious puzzle they seemed at first. You now know why that cable didn’t fit, which type you actually need, and how to future-proof your setup. The relief you’ll feel when everything just works—when charging becomes as simple as plugging in your phone—that’s worth these few minutes of learning. Remember, even seasoned EV drivers had to figure this out once. The most important step? Just getting started with what works for your car and lifestyle today. Happy charging, and welcome to the electric future!
EV Charger Cable Types (FAQs)
What’s the difference between Mode 3 and Mode 4 charging cables?
Mode 3 cables are portable AC charging cables you own and carry, delivering 7-22 kW for daily home and public charging. Mode 4 systems are permanently attached DC fast charging cables built into highway charging stations, providing 50-350+ kW for rapid charging. You’ll never own a Mode 4 cable – they’re too heavy, expensive, and dangerous for consumer ownership.
Which EV charging cable do I need for my car?
Check your vehicle’s charging port type first. North American non-Tesla EVs typically use J1772 (Type 1) for AC charging and CCS1 for DC. European vehicles use Type 2 for AC and CCS2 for DC. Tesla vehicles in North America use NACS for both AC and DC. Match your cable to your car’s port type and onboard charger capacity (usually 7.4 kW, 11 kW, or 22 kW).
Can I use a 32A cable on a 16A charger?
Yes, absolutely. Using a higher-rated cable on a lower-powered charger is completely safe and often recommended. The charger determines the maximum current, so your 32A cable will only draw 16A from a 16A charger. This setup future-proofs your cable for higher-power charging equipment later. Never use a lower-rated cable on a higher-powered charger – that creates fire hazards.
Why are Mode 4 cables permanently attached to chargers?
Mode 4 DC fast charging cables carry 100-500+ amps of current, requiring thick copper conductors and liquid cooling systems. These cables weigh 15-30 pounds and cost $2,000-5,000 each. The high voltage (400-1000V) and current levels create safety hazards that require specialized training to handle safely. Permanent attachment ensures proper maintenance and prevents dangerous misuse.
How do I know if I need single or three-phase cable?
Check your home’s electrical service and your vehicle’s specifications. North American homes typically provide split-phase 240V service that requires single-phase cables (max 19.2 kW). European homes often have three-phase 400V service that enables three-phase charging up to 22 kW. Your vehicle must also support three-phase charging – many EVs only accept single-phase power regardless of the cable type.
